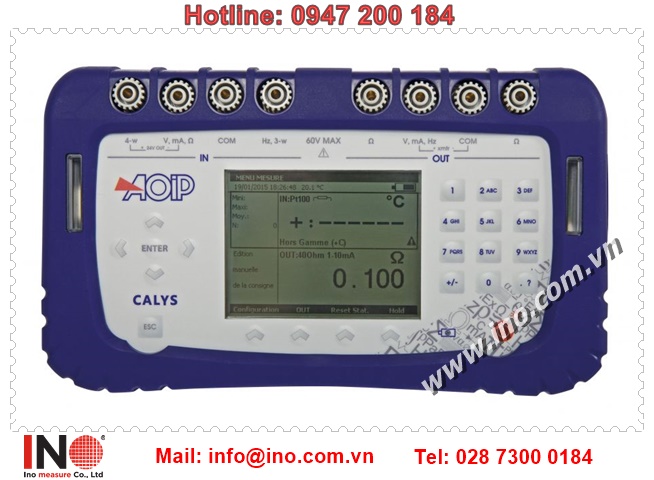

CALYS 150 field documenting multifunction calibrator is the top instrument of the range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument.

CALYS 150 does not only work as a simulator (IN / OUT) but also as a dual channel thermometer (IN / IN) to perform comparison calibration. It calibrates HART transmitters (HART communicator integrated into ACL500 modem) and thermistors.

Providing extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…) and audit trails, CALYS 150 complies with both 21 CFR Part 11 and NADCAP Heat Treatment standards and makes advanced data exploitation and full data traceability easier.

High performances for CALYS 150, for advanced use:

  • Temperature Up to 0.005 % RDG
  • Resistance Up to 0.006 % RDG and 50 KΩ range
  • Current: Up to 0.007 % RDG and 100 mA range + Loop Supply 24 V
  • Voltage: Up to 0.005 % RDG and 50 V range
  • Frequency: Up to 0.01 % RDG and 100 KHz range

Using this user-friendly instrument, calibration tasks can be quickly carried out over the whole process chain. Take the 900 g documenting process calibrator to the field with you during the whole week with 10 calibration procedures stored in the device. Run the procedure after connecting the probes to the instrument (Easy connect system®) and save the results for onsite easy and quick calibration. Back to the office, you can then upload the data on a computer in order to issue customized calibration certificates with dedicated calibration software DATACAL.

IP 54, fully protected by an antichoc rubber holster, CALYS 150 integrates "easyconnect" terminals and a wide backlite display that makes it easy to use in any severe or dark conditions.

When used with an external pressure module (ref. ACL433), CALYS 150 can measure and simulate pressure (comparison calibration with a pressure pump).

CALYS 150 has also the capability to drive baths and dry-blocks when associated with the specific cable (ref. ACL600).

Easy connection system

Connect your probes by simply pushing on the terminal top and insert wires of up to 3 mm or 10 AWG diameter and compensated thermocouple connectors.

Wires are held tight between two brass plates ensuring thermal stability and a very good cold junction compensation for thermocouples.

This system also enables 4 mm banana plugs and security connectors to be connected on the terminal top.

Specifications and performances in temperature @23°C ±5°C

Uncertainty is given in % of reading (CALYS 150 display) + fixed value.

Resistive probes: Measurement and simulation

Sensor Range (Input and Output) Resolution Accuracy / 1 year (Measurement) Accuracy / 1 year (Simulation)
Pt50 (= 3851) -220°C to +850°C 0.01°C 0.006% RDG + 0.04°C 0.006% RDG + 0.04°C
Pt100 (= 3851) -220°C to +850°C 0.01°C 0.006% RDG + 0.03°C 0.006% RDG + 0.03°C
Pt100 (= 3916) -200°C to +510°C 0.01°C 0.006% RDG + 0.03°C 0.006% RDG + 0.03°C
Pt100 (= 3926) -210°C to +850°C 0.01°C 0.006% RDG + 0.03°C 0.006% RDG + 0.03°C
Pt200 (= 3851) -220°C to +850°C 0.01°C 0.006% RDG + 0.04°C 0.006% RDG + 0.04°C
Pt500 (= 3851) -220°C to +850°C 0.01°C 0.006% RDG + 0.03°C 0.006% RDG + 0.03°C
Pt1000 (= 3851) -220°C to +850°C 0.01°C 0.006% RDG + 0.03°C 0.006% RDG + 0.03°C
Ni100 (= 618) -60°C to 180°C 0.01°C 0.006% RDG + 0.05°C 0.006% RDG + 0.05°C
Ni120 (= 672) -40°C to +205°C 0.01°C 0.006% RDG + 0.05°C 0.006% RDG + 0.05°C
Ni1000 (= 618) -60°C to +180°C 0.01°C 0.006% RDG + 0.05°C 0.006% RDG + 0.05°C
Cu10 (= 427) -50°C to 150°C 0.10°C 0.006% RDG + 0.18°C 0.006% RDG + 0.18°C
Cu50 (= 428) -50°C to +150°C 0.01°C 0.006% RDG + 0.05°C 0.006% RDG + 0.05°C

Resistive probes measurements in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen

Accuracies are given for 4-wire mounted probes

Take into account particular error of temperature sensor used and implementation conditions

Admissible measuring current: 0.01 mA to 1 mA

In simulation mode, specifications given for 1 mA measuring current (Pt50 / 100, Ni100 / 120, Cu10 / 50) or 0.1 mA (Pt200 / 500 / 1000, Ni1000)

Establishing time:  <1ms for simulation (simulation on quick transmitters)

Temperature coefficient: < 10% of accuracy /°C

Thermocouples: Measurement and simulation

Type Input range Resolution Accuracy / 1 year (Measurement) Output range Resolution Accuracy / 1 year (Simulation)
K -250 to -200°C

-200 to -120°C

-120 to +1372°C		 0.10°C

0.05°C

0.01°C		 0.50°C

0.15°C

0.005% RDG + 0.08°C		 -250 to -50°C

-50 to +120°C

+120 to +1020°C

+1020 to +1370°C		 0.01°C

0.01°C

0.01°C

0.01°C		 0.15% RDG

0.06°C

0.005% RDG + 0.05°C

0.007% RDG + 0.05°C
T -250 to -200°C

-200 to -100°C

-100 to +80°C

+80 to +400°C		 0.1°C

0. 01°C

0.01°C

0.01°C		 0.50°C

0.05% RDG + 0.06°C

0.015% RDG + 0.07°C

0.06°C		 -250 to -100°C

-100 to +0°C

+0 to +400°C		 0.01°C

0.01°C

0.01°C		 0.1% RDG + 0.05°C

0.02% RDG + 0.06°C

0.055°C
J -210 to -120°C

-120 to +60°C

+60 to +1200°C		 0.01°C

0.01°C

0.01°C		 0.15°C

0.005% RDG + 0.07°C

0.0025% RDG + 0.06°C		 -210 to +0°C

+0 to +50°C

+50 to +1200°C		 0.01°C

0.01°C

0.01°C		 0.03% RDG + 0.08°C

0.05% RDG + 0.07°C

0.005% RDG + 0.04°C
R -50 to +150°C

+150 to +550°C

+550 to 1768°C		 0.20°C

0.10°C

0.01°C		 +0.60°C

+0.30°C

+0.30°C		 -50 to +0°C

+0 to +350°C

+350 to +1768°C		 0.01°C

0.01°C

0.01°C		 0.35% RDG + 0.4°C

+0.4°C

+0.25°C
S -50 to +150°C

+150 to +550°C

+550 to +1450°C

+1450 to +1768°C		 0.20°C

0.10°C

0.05°C

0.05°C		 0.80°C

0.30°C

0.30°C

0.35°C		 -50 to +0°C

+0 to +350°C

+350 to +1768°C		 0.01°C

0.01°C

0.01°C		 0.25% RDG + 0.4°C

0.30°C

0.25°C
B +400 to +900°C

+900 to +1820°C		 0.10°C

0.05°C		 0.005% RDG + 0.4°C

0.005% RDG + 0.2°C		 +400 to +900°C

+900 to +1820°C		 0.01°C

0.01°C		 0.005% RDG + 0.4°C

0.005% RDG + 0.2°C
U -200 to -100°C

-100 to +660°C		 0.01°C

0.01°C		 +0.13°C

+0.09°C		 -200 to +400°C

+400 to +600°C		 0.05°C

0.05°C		 +0.09°C

+0.11°C
N -240 to -190°C

-190 to -110°C

-110 to +0°C

+0 to +400°C

+400 to +1300°C		 0.10°C

0.05°C

0.01°C

0.01°C

0.01°C		 0.25% RDG

0.10% RDG

0.04% RDG + 0.06°C

0.08°C

0.005% RDG + 0.06°C		 -240 to -200°C

-200 to +10°C

+10 to +250°C

+250 to +1300°C		 0.01°C

0.01°C

0.01°C

0.01°C		 0.15% RDG

+0.10°C

+0.08°C

0.008% RDG + 0.05°C

Thermocouples: PlatineL, Mo, NiMo/NiCo, G, D, L, C: For specifications, refer to the instruction manual (Available on request)

Accuracy is given for reference @ 0°C.

When using the internal reference junction (except couple B) add an additional uncertainty of 0.2 °C at 0 °C.

It is possible (thermocouple B excepted) to choose by programming the cold junction localization: External at 0°C, internal (temperature compensation of instrument’s terminals) or manually entered.

Temperature coefficient: <10% of accuracy /°C

Display unit: °C and F.
