DESCIPTION

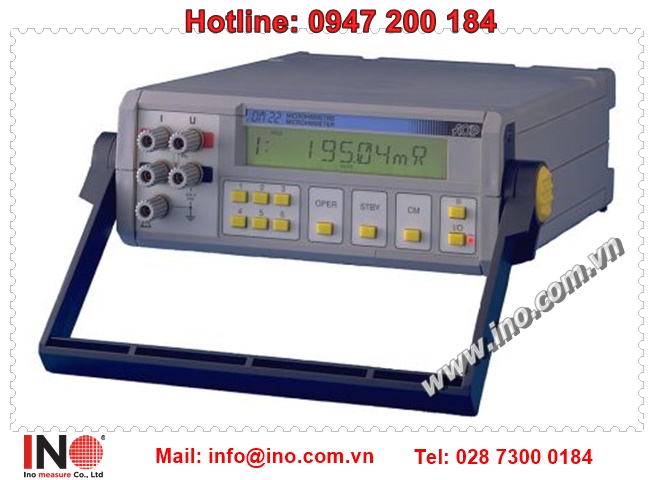

OM 22 benchtop micro-ohmmeter is used for 4-wire measurement of very low resistance values up to 20 kΩ with an accuracy of 0.03% RDG and a 0.1 µΩ resolution. Programmable, it is particularly suited for use on test benches with repetitive measurement tasks. The reliability and accuracy of the measurements is improved by a low temperature coefficient of 10 ppm/°C, automatic removal of EMF parasites before each measurement, metal temperature compensation and compensation of ambient temperature.
With three current waveforms available -continuous, pulse or AC current- from 100 µA to 10 A and high flexibility of trigger and sampling conditions, OM 22 low resistance ohmmeter covers a wide range of applications: Cable resistance and resistivity measurement, inductive resistance measurement (motors and transformers winding resistance), contact resistance measurement (connectors, switches, relays…), test of low power electrical components (fuses…) and heat sensitive devices, metallisation / earth bonding and ground continuity measurement.
OM 22 is a programmable instrument, ideal for use on test benches: it has 6 configurations to be modified and recalled by users upon request through the 6 direct keys on the front board. Every configuration defines every measurement aspects: range, current waveform and value, number of measurements per cycle with temporisation, storage conditions, temperature compensation, measuring unit, metal under test, calculations of coil heating or W/km, alarm settings, maximum measurement voltage, analogue output, trigger conditions…
If necessary, OM 22 configurations can be modified through LOG OM data management software delivered in the standard package.
Up to 1,000 samples can be stored inside the instrument and be recalled directly on the display or on computer via LOG OM.
SPECIFICTIONS
Resistance measurement
| Range | Resolution | Accuracy at 90 days (23°C ±1°C) |
Measuring current | Voltage drop |
| 2 mΩ | 0.1 μΩ | 0.05% + 0.3 μΩ | 10 A | 20 mV |
| 20 mΩ | 1 μΩ | 0.05% + 2 μΩ | 10 A | 200 mV |
| 20 mΩ | 1 μΩ | 0.05% + 3 μΩ | 1 A | 20 mV |
| 200 mΩ | 10 μΩ | 0.05% + 10 μΩ | 10 A | 2 V |
| 200 mΩ | 10 μΩ | 0.05% + 20 μΩ | 1 A | 200 mV |
| 200 mΩ | 10 μΩ | 0.05% + 30 μΩ | 100 mA | 20 mV |
| 2 Ω | 100 μΩ | 0.05% + 100 μΩ | 1 A | 2 V |
| 2 Ω | 100 μΩ | 0.03% + 200 μΩ | 100 mA | 200 mV |
| 2 Ω | 100 μΩ | 0.03% + 300 μΩ | 10 mA | 20 mV |
| 20 Ω | 1 mΩ | 0.03% + 1 mΩ | 100 mA | 2 V |
| 20 Ω | 1 mΩ | 0.03% + 2 mΩ | 10 mA | 200 mV |
| 20 Ω | 1 mΩ | 0.03% + 3 mΩ | 1 mA | 20 mV |
| 200 Ω | 10 mΩ | 0.03% + 10 mΩ | 10 mA | 2 V |
| 200 Ω | 10 mΩ | 0.03% + 20 mΩ | 1 mA | 200 mV |
| 200 Ω | 10 mΩ | 0.03% + 30 mΩ | 100 µA | 20 mV |
| 2 kΩ | 100 mΩ | 0.03% + 100 mΩ | 1 mA | 2 V |
| 2 kΩ | 100 mΩ | 0.03% + 200 mΩ | 100 µA | 200 mV |
| 20 kΩ | 1 Ω | 0.03% + 1 Ω | 100 µA | 2 V |
Automatic or manual selection of measurement range
Accuracy given in % of reading + counts over 90 days at 23 ±1°C
Maximum capacity: 26,000 counts
Further features
| Configurations | 6 configurations available, to be modified if necessary with LOG OM software delivered in standard |
| Resistance types |
|
| Measuring current |
|
| Measurement time | < 1 s in direct current mode < 1,5 s in pulse current mode < 2 s in alternate current mode |
| Measurement trigger conditions | Manual or automatic trigger from 2 measures/s to 1 measure/9h, allowing a single operator to be able to perform measurements |
| EMFs | Automatic compensation of EMF parasites before each measurement for a greater accuracy |
| Temperature compensation | Choice of metal temperature coefficient Choice of ambient temperature (programmed or measured with external probe) Temperature compensation at 20°C: Resolution: 0.1°C, accuracy: ±0.5°C (R20 = Resistance compensated at ambient temperature equal to 20°C |
| Temperature coefficient beyond operating range | < 10% accuracy/°C |
| Relative measurements | Display L = R-R0 or L = 100 x (R-R0)/R0 in % Where L: read value, R: measured value and R: reference value either recalled from memory or entered by the operator |
| Coil heating calculation | Coil heating calculation according to ambient temperature, original coil resistance at ambient temperature, coil resistance once heated and coil material |
| Alarms | 2 programmable thresholds with visual and sound signal and relay outputs |
| Outputs |
|
| Calibration | Digital calibration without internal adjustment |
General specifications
| Size | 225 x 88 x 310 mm |
| Weight | 2 to 3 kg depending on options |
| Display | LCD 26,000 counts, 16 figures lighted, 11.5 mm high |
| Power supply | 115 / 230 V (50 / 60 Hz) |
| Battery with internal charger(option) | Type: 12 V battery pack Battery life: 2 to 8 h according to use Charging time: 14 h |
| Communication ports |
Allows programming, data management and unit calibration directly from a computer |
| Storage capacity | 1,000 measurements with average, minimum and maximum value Memory reading directly on the display or through digital and analogue interfaces |
Environmental specifications
| Reference range | 23°C ±1°C (RH: 45 to 75% w/o condensing) |
| Operating reference range | 0 to 50°C (RH: 20 to 80% w/o condensing) |
| Limit operating range | -10°C to +50°C (RH: 10 to 80% w/o condensing) |
| Storage temperature limits | -30°C to +55°C (-15°C to +50°C for model with battery) |
| Protection IP | IP40 according to EN60529 |
| Maximum altitude | 2,500 m |
Safety specifications
| Protections |
|
| Class | In accordance with EN 61010-1 Category III, pollution 2 |
| Rated voltage | 50 V |
| Chocks and vibrations | EN61010-1 |
| EMC conformity | Immunity:
Conducted and radiated emissions:
|
