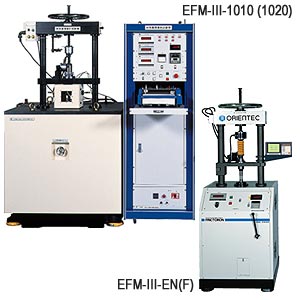

A&D-FRICTORON friction and wear tester (Model:EFM-III Series)

Friction and Wear Tester for Tribology Evaluation
The EFM-III series is a friction and wear tester for tribology evaluation in conformity with JIS K 7218. This tester is designed for scientific elucidation and technical evaluation of the characteristics relating to sliding friction, wear and lubrication, that are surface behaviors of relative properties of two interacting material surfaces (relative properties of solid materials in relative motion).
To calculate the friction coefficient (µ), the EFM-III series detects a shear force, as a friction force (F), by applying rotational sliding movement to a test piece at a set pressure load (P) and a set sliding velocity (V). In addition, after an evaluation of the PV limit value and a long-time sliding test, the EFM-III series measures the decrease in weight or dimension of the test piece to evaluate its wear resistance.

Features of the EFM-III Series

– Conforms with JIS K 7218 – Applicable to ring, disc and pin test pieces – Sliding speed ranging from 0.001 cm/sec to 1000 cm/sec – Frictional force measurement ranging from 2 N-cm to 1000 N-cm – System can be customized (additional measurement and control items, etc.)

EFM-III Series applications

– Evaluation of friction properties relating to materials and products (metal, plastic, ceramics, bearing materials, brake lining materials, clutch disks, self-lubricated materials, lubricant oil, etc.) Measurement of static/kinetic friction Measurement of wear amount Measurement of PV limit value Evaluation of seizure conditions – Evaluation of the friction properties according to material combinations – Evaluation of the relation between surface treatment and friction properties – Evaluation of the relation between environmental conditions and friction properties Examples of tests in conformity with JIS K 7128

Ring- on-ring Ring-on-disc Three-pin-on-disc

Measurement and control system

Add-on software MSAT0009 – Enables automatic control of the tester's contact pressure and sliding velocity in incremental steps (up to 50 steps) – Displays a graph detailing average values of friction coefficient, etc. at each step – Saves test data as well as easily retrieves and displays test results – Displays each calculation item in various units

MSAT0001 MSAT0009

Customizable system using the AD-5400 series

– By using the AD-5400 series or the AD-4820 series, a measurement and control system can be built to meet the needs of customers. – Devices for adding measurement items: AD4820 optional board AD5430-01 16ch A/D board – Devices for adding control items AD5430-11 Six-axis encoder input board to control motor AD4820-10 Standard I/O board to control heater, etc. – Signal conditioner It is possible to design and manufacture a signal conditioner to connect to the AD-5400 series or the AD-4820 series, which makes it possible to respond to the additional measurement and control needs of customers.

AD-5410 AD-5430 AD-4820

Click to enlarge

General purpose testing machine data processing system

General purpose testing machine data processing system Add-on software MSAT-0009 for the friction and wear tester This additional data processing software controls the revolution speed and the contact load of the EFM series and other various friction and wear testers and can acquire and analyze friction data.

Setting Measurement Reference Preset conditions to automatically perform stepwise control of contact load (pressure load P) and revolution speed (sliding velocity V) are required for friction test evaluation to collect data. Friction force, contact load, revolution speed and temperature data can be acquired and then converted into various units to be displayed in a graph or table. Results can be output in an arbitrary combination of friction coefficient, contact pressure, sliding distance, sliding velocity, etc. Data on the relation between PV value and friction coefficient can be displayed based on the step average of the measurement result.

Specifications

Basic software MSAT-0001 Add-on software for friction and wear tester MSAT-0009 Automatic pressurizing mechanism

Control item – Maximum number of STEPS: 100 (holding time of each step can be selected from seconds, minutes or hours*) – Contact load: 5000N at maximum – Revolution speed: limited value of the tester Measurement item Contact load, Contact pressure Friction force, Friction force amplitude, Friction force, Maximum friction force, Minimum friction force Elapsed time Revolution speed Sample temperature Ambient temperature Amount of friction Sliding distance Coefficient of friction, Amplitude of friction coefficient, Maximum friction coefficient, Minimum friction coefficient PV value Optional equation

Data unit of measurement

Physical quantity Unit Contact pressure Pa, kPa, MPa, GPa, N/mm2, N/cm2, gf/mm2, gf/cm2, kgf/mm2, kgf/cm2, tf/mm2, tf/cm2, pai, dyn/cm2 PV value Pa・m/sec, kPa・m/sec, MPa・m/sec, GPa・m/sec, gf/mm2・m/sec, kgf/mm2・m/sec, tf/mm2・m/sec, gf/cm2・m/sec, kgf/cm2・m/sec, tf/cm2・m/sec, psi・in/sec Time s, min, h, ms, µs Coefficient of friction Dimensionless Amount of friction µm, mm, cm, m, in, ft, km Sectional area µm2, mm2, cm2, m2, in2, ft2 Revolution speed (angular speed) rpm, rad/s Temperature °C, K, °F Velocity mm/min, mm/sec, m/min, m/sec, in/sec Load mN, cN, N, gf, kgf, lbf, dyn Mass g, kg, lb

Sample result using the general purpose testing machine data processing system

Specifications

Test piece and mounting attachment

1. Ring-on-ring test piece 2. Attachment for ring-on-disc 3.Attachment for three-pin-on-disc (optional) 1. Ring-on-ring test piece 1. Cylindrical test piece 2. Cylindrical test piece for temperature measurement (Option with thermocouple hole) 2. Attachment for ring-on-disc 1. Flat plate test piece (hard material)(optional) Height: 30 mmLength: 30 mmWidth: 2 mm -5 mm 2. Disk test piece (optional) Diameter: φ46 mmWidth: 2mm – 5 mm 3.Attachment for three-pin-on-disc (optional) 1. PinDiameter: φ5 mmHeight: 8 mmNumber of pins: 3 2. DiskDiameter: φ60 mm

Option

1. Test piece and mounting attachment (a)Metal cylindrical test piece for temperature measurement (S45C) (b)Mounting attachment for cylindrical test piece (c)Mounting attachment for flat plate test piece (d)Attachment for pin-on-disc 2. Oil bath Capacity: approx. 250 cc Maximum sliding velocity: 200 cm/sec 3. Heating oil bus Capacity: approx. 800 cc Maximum sliding velocity: 200 cm/sec Temperature control range: Rt – +100°C Temperature controller: PID temperature control 4. Simplified heating furnace Temperature range: Rt – +300°C Temperature controller: Slidax Temperature setting: 3-digit digital method 5. High temperature chamber Heating method: Circulating hot air Temperature range: Rt – +200°C Temperature distribution: ±5°C (30 at center, 10 mm at top and bottom) 6. High and low temperature chamber Cooling method: Liquid carbon dioxide spray Heating method: Circulating hot air Temperature range: -50 – +200°C Temperature distribution: ±5°C(φ30 at center, 10 mm at top and bottom) Liquid CO2 usage: 30 kg cylinder for 24 hours 7. Pseudo-friction measurement instrument Measurement range: 0 – 5 mm Resolution: 0.1% FS Linearity: 1.0 % FS
