A&D-TENSILON (Model:RTF Series)

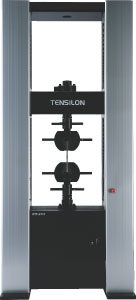

The TENSILON RTF is our newest universal testing machine offering innovative measuring possibilities, based on A&D's newly-developed and extensive technological knowledge. The RTF Series is a world-class Class 0.5 testing machine. Having improved the overall design and structure of the machine, we achieved a very strong load frame stiffness enabling super-high accuracy in measurement. We also took the informed opinions of machine operators into consideration in order to improve the performance and functions of our model. The TENSILON RTF Series heralds the beginning of a new era in measurement.

Features A&D's world-class Class 0.5 testing machine
Load frame stiffness has been greatly improved by 30%
Rated output accuracy of up to 1/500 is guaranteed
High-speed sampling:1 msec
A maximum of 13 input signal channels
Color touch panel (optional)
Various operational environments

Color Touch panel

The color touch panel offers superb visibility and easier operation.

Either the color touch panel OP-01 or MSAT data procesing software (on a personal computer) can be selected for user interface.

Touch Panel MSAT Display Commander Recorder RTF with Touch panel OP-01 Optional Optional Optional Optional

Test Screen The main window for displaying a graph and starting a test Mode Selection Select testing mode Condition Measurement Setting test speed, such as constant crosshead speed and constant load increase speed Operation Window Ultra-fine, fine and coarse adjustments possible Load Calibration Simple load calibration with the touch of a button

MSAT (Multi Signal Analysis Testing)

Data processing software

The MSAT series is equipped with functions for not only testing machine operation but also data analysis, calculation and data storage for each testing mode. The operator can select Standard test (tensile, compression and bending) mode, Peeling test mode, Cycle test mode, Creep test mode, Stress relaxation test mode etc. depending on the purpose of the test.

PC operation environment OS: Windows XP Professional. Program size: 80Mb or smaller. Memory requirement: 512Mb or over. Authority requirement: Administrator authority. USB: One USB port. Display resolution: 800×600 dots or higher color display .

Touch Panel MSAT Display Commander Recorder MSAT Optional Standard (Mandatory) Optional Optional Optional

Standard layout setting during a measurement

Status Display Window, Graph Display Window and Table Display Window Operation Conditions Window, Sample Information Window, Detailed Conditions Window, Dimension Table Window Analysis Condition Window, Table Display Window, Arbitrary Formula Window Reanalysis Window

Display & Commander

RTF series with user interface for advanced operation

Display

Detachable digital display for load and displacement indication. This display can be attached with magnets to any part of the machine and it does not obstruct the user when fixing a sample to the jig or testing a sample as its position can be freely adjusted.

Fixing method Magnet attachment method Display data Load/displacement Load 6-digit indication Displacement 6-digit indication

Load

6-digit indication The indication unit will be automatically selected from kN, N, mN or N.

Displacement

1/1000 display at minimum The detachable display offers a more organized and efficient workspace.

Commander

Handy compact commander for testing machine control. This commander can be attached to the top, bottom, left or right of the testing machine digital display for load and displacement indication. The commander's manual operation buttons are ergonomically designed with bright colors and varied sizes for superior ease-of-use. The jog dial on the right hand side of the commander offers extra flexible control and the operator can move the crosshead up and down by manually rotating this dial.

Applications

A&D's wide range of applied products for even more advanced applications :

Applied test jigs for strength measurement

Screw action jaws Air jaws Compression cage Wedge action jaws Compression test jig Compression type bending test jig

Applied testing devices for elongation measurement

SG series strain gauge device for measuring distance between gauge marks Non-contact extensometer between gauge marks

Applications

LOT SET Application Excel PU Quality control application

Applied testing devices for temperature / environment test

· Constant temperature / constant humidity testing devices · High temperature testing devices · Ultra-low temperature testing devices · High humidity in gas atmosphere testing devices · High humidity in vacuum testing devices · Dipping testing devices

Data Recorder

Analog recorder (AR-6600-7) This recorder is equipped with a control panel providing easy setup with one-touch zero-span adjustment and auto ranging.

Load frame table

Dimensions (mm) RTF-20 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210 680(W)x555(D)x630(H) RTF-22 for RTF-1350 and RTF-1325 897(W)x650(D)x460(H)

Recorder table (Wing)

Dimensions (mm) RTF-21 for RTF-1350 and RTF-1325 420mm(W)x430mm(D) Can be mounted on either the right or left side. RTF-23 for RTF-1310, RTF-1250, RTF-1225 and RTF-1210 420mm(W)x430mm(D) Can be mounted on either the right or left side. Wing (sold separately)
