The DCS Family of 1 kW, 1.2 kW and 3 kW programmable power supplies uses unique packaging techniques to achieve continuous full output power (1 kW, 1.2 kW or 3 kW) in any volt/amp combination within the rated output voltage and current limits in a low profile chassis., Demonstrated large installed base over a long period of time, the DCS family provides a highly reliable power platform.
The DCS 3kW Series includes the following models:
- DCS 8-350E
- DCS 12-250E
- DCS 20-150E
- DCS 40-75E
- DCS 55-55E
- DCS 60-50E
- DCS 80-37E
- DCS 150-20E

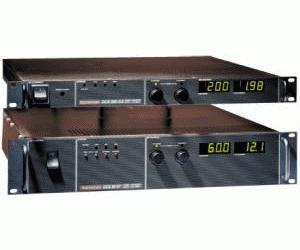

This family has an easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and over voltage protection, status and constant-voltage/current mode operation. The DCS 3 kW Models have push button control of the output standby mode, OVP reset, remote/local programming and preview status of voltage, current and OVP setpoints.
The DCS family can also be controlled remotely. Four analog control modes are standard as well as isolated analog control (option). Computer control can be accomplished over IEEE488.2 GPIB (option) or LXI-compliant Ethernet (option)
| Number of Outputs |
Single |
| Max. Voltage | 150.0 V |
| Max. Current | 350.00 A |
| Ripple and Noise | 10 mVrms |
| Computer Interface | GPIB, Ethernet, RS-232 |
| Status | new |
| See also | DCS Series – 1 kW, DCS Series – 1.2 kW |
