SPS BONAFIDE SERIES of PROGRAMMABLE DC SWITCHING POWER SUPPLIES (1.6kW)
The SPS BONAFIDE series of programmable dc switching power supplies offer feature-packed yet affordable 1.6kW dc power supply solutions available in 2 versions, Basic and Premium.
AMREL’s SPS Bonafide Switching Power Supply’s Basic models provide a multitude of control methods at an affordable value, such as:
• Simple Local Operation: Local controls and display for bench-top or laboratory use
•Bench-top Simulation: VLIST and ILIST auto-sequencing for test profile simulation
• Ideal for PLC and DAQ Systems Automation:
• • • • • Standard-version 0~5Vdc or 0~10Vdc analog control and monitoring
• • • • • Optional Isolated analog control and monitoring
• • • • • Resistive analog control available
• Digital Programming Ready: Standard USB, RS-232/RS-485, LabVIEW/LabWindows drivers,
• and standard SCPI Commands for ATE system integration and automated testing
• Best Overall Value: The industry’s most practical and economical 400Hz 1.6kW switching power supply
• with a balanced feature set of USB/RS-232/RS-485 interfaces, analog control & monitoring and
• user-friendly local operation
AMREL’s feature-rich SPS Bonafide Switching Power Supply’s Premium models include an advanced digital platform with:
• More Interfaces: RS-232, USB, GPIB & Ethernet interfaces (standard drivers and SCPI command set included)
• for ATE system integration or automated testing
• Simple Local Control: User-friendly keypad and encoder
• Accurate Measurements: 16-bit high-resolution VFD display for accurate voltage & current measurements
• without a DMM
• More Features Maximizes your ROI:
• • • • • In-rack closed-case digital calibration saves annual calibration costs
• • • • • Standard Over-voltage, Over-current and Over-temperature protection
• • • • • In-field firmware updates keep the SPS features and functions up-to-date
• • • • • Advanced fault monitoring (remote inhibit and dry fault contact output) and optimized heat dissipation
• • • • • Extensive menu options and local memory storage for testing profiles
• Best Performance & Value: The most cost-effective and feature-packed 400Hz 1.6kW switching power supply
• with GPIB, RS-232, USB and Ethernet interfaces and rich feature set.
• (See the SPS Bonafide’s Features and Benefits for more information)
AMREL’s SPS Bravura Switching Power Supply’s Basic Models are available with:
• Simple Local Operation: Voltage & Current adjustment knobs and meters, output on/off key,
• and fault & CV/CC mode LED indicators
• Ideal for PLC and DAQ Systems Automation:
• • • • • Standard-version 0~5Vdc or 0~10Vdc analog control and monitoring
• • • • • Optional Isolated analog control and monitoring
• • • • • Resistive analog control available
• Best Value: The industry’s most affordable and user-friendly 400Hz 1.6kW switching power supply in a 1U package
With multiple voltage and current ratings, interface options, and exclusive high voltage models and relay options, the SPS Bonafide series has the widest selection of programmable dc switching power supplies to choose from. As with the entireePower line of programmable dc power supplies,AMREL can customize anyoftheSPS programmable dc switching power supplies to meet your unique application needs
Features Applicable to the Bonafide Basic
More Interfaces and Simple User Navigation

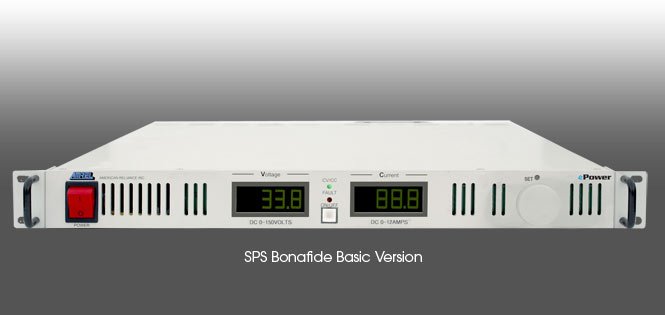

The SPS Bonafide Basic programmable switch mode power supply provides a simple user navigation interface consisting of digital encoder, high-intensity voltage and current LED displays, fault and CV/CC mode LED indicators, front panel on/off key and intuitive functional menu set. When using external analog control and monitoring, simply adjust the dip switches to select from 0~5Vdc or 0~10Vdc control mode, connect your analog voltage signal and the unit is ready to operate.
In addition, the SPS Bonafide Basic programmable switch mode power supply comes standard with RS-232, RS-485, and USB interfaces. Standard LabVIEW and LabWindows drivers provide simple ATE Integration, and a complete set ofSCPI Commands provide flexible programmability. Connectors are provided on the rear of the unit. Instructions for configuring are in the manual.
____________________________________________________________________________________________
Features Applicable to the Bonafide Premium
The SPS Bonafide Premium programmable switch mode power supply provides a complete set of front panel controls for all available features. A multi-function keypad and an easy-to-navigate functional menu allow the user to access all settings via a simple and logical user interface. A high-resolution VFD display is provided for display of important functions, settings, operating parameters and voltage and current measurements.
In addition, the SPS Bonafide Premium programmable switch mode power supply comes standard with RS-232, GPIB IEEE-488 RS-485, USB and Ethernet interfaces. Standard LabVIEW and LabWindows drivers provide simple ATE Integration, and a complete set of SCPI Commands provide flexible programmability. Connectors are provided on the rear of the unit. Instructions for configuring are in the manual.
_________________________________________________________________________________________
Exceptional Features and Benefits include:
AMREL’s Exclusive and Innovative 400hz-Rated PFC ac Input
Amrel's SPS BONAFIDE offers the industry’s only 45 ~ 440Hz & 85 ~ 265Vac rated PFC (power factor corrected) AC Front End. The unique design offers flexibility for using standard voltages across the world, and allows users in the avionics/defense/military to power their DUT via 400Hz input frequency.
Common features for the 1.6kW Basic and Premium Models
• Exclusive 800Vdc and 1000Vdc Models: Achieve test results with the exact voltage ratings you need
• Industry’s Best Cost-to-Feature Ratio: Feature-packed at an affordable value
• Wide Range 400Hz AC Input: Single Phase PFC 85~165Vac @ 45 ~ 440Hz
• Maximizes Your ROI:
• • • • • In-rack Closed-case Digital Calibration Saves Annual Calibration Costs
• • • • • Standard Over-voltage, Over-current and Over-temperature Protection
• • • • • In-field firmware updates keep the SPS features and functions up-to-date
• Widest Selection: Your choice of 14 models or tailor your SPS today
• Wide Continuous AC Input: Single Phase 85~265Vac @ 47 ~ 63Hz
• Rack-mount Ready: Standard 19” rack mount kit included
• Ideal for Bench-top or Lab Bench Applications:
• • • • • Local voltage and current controls and display for bench-top or laboratory use
• • • • • VLIST and ILIST auto-sequencing for simulation of test profiles
• Increased Reliability: front & rear air circulation effectively cools high-heat power components
• to ensure performance under high ambient conditions
• High Power Density: 1.6kW in a 1U package
• Quiet and Powerful: Fan-speed control to reduce acoustic noise
• Designed for ATE Applications:
• • • • • Select from Basic Version (USB/RS-232/RS-485 interfaces) or
• • • • • Premium Version (GPIB/RS-232/USB/Ethernet interfaces)
• • • • • Standard LabView and LabWindow Drivers
• • • • • SCPI command set allows ATE system integration with simplicity & ease
• • • • • Ask about the Master-slave capabilities of the SPS Bonafide Series
• Advanced Remote Fault Monitoring:
• • • • • Fault Dry Contact for automated protection trip alarms
• • • • • Remote Shut Down for interlock and redundant system protection
• Two Modes in One: Operate in CV, CC or Auto-crossover mode with ease
• Parallel or Series Operation: For your high current/voltage applications
• Test Flexibly: Remote Sensing compensates line-drop measurement errors
• Safety First: Quickly drains Output Voltage during protection trips
• More Options: AMREL’s Exclusive Solid-state or Standard Mechanical Polarity Reversal & Isolation Relays
• System Expansion Ready: Master-slave multiple units via single PC connection
• AMREL’s Unique Advantage: Modified & Customized Solutions Available
Common features for the 1.6kW Analog Models
• Exclusive 800Vdc and 1000Vdc Models: Achieve test results with the exact voltage ratings you need
• Industry’s Best Cost-to-Feature Ratio:Why pay for features you don’t need?
• Wide Range 400Hz AC Input: Single Phase PFC 85~165Vac @ 45 ~ 440Hz
• Rack-mount Ready: 19” rack mount kit included for ATE System Integration
• Increased Reliability: front & rear air circulation effectively cools high-heat power components
• •to ensure performance under high ambient conditions
• High Power Density: 1.6kW in a 1U package
• Quiet and Powerful: Fan-speed control to reduce acoustic noise
• Advanced Remote Fault Monitoring:
• • • • • Fault Dry Contact Output for automated protection trip alarms
• • • • • Remote Shut Down for interlock and redundant system protection
• Designed for ATE Applications (Digital Version Only):
• • • • • Standard GPIB/RS-232/RS-485 interfaces with master-slave capability
• • • • • Standard LabVIEW and LabWindows Drivers o SCPI command set allows
ATE system integration with simplicity & ease
• Two modes in one: Operate in CV, CC or Auto-crossover mode with ease
• Parallel or Series Operation: For your high current/voltage applications
• Test Flexibly: Remote Sensing compensates line-drop measurement errors
• Safety First: Quickly drains Output Voltage during protection trips
• More Options: AMREL’s Exclusive Solid-state or Standard Mechanical Polarity Reversal & Isolation Relays
• AMREL’s Unique Advantage: Modified & Customized Solutions Available
Maximize Your ROI (Return On Investment)
Closed-case Calibration
With the ePower line, you’ll never have to send your programmable dc switch mode power supply back to the factory for calibration or remove dozens of screws to reach a potentiometer. Simply follow the AMREL calibration routine using the front panel and you should be back up and running in a very short period of time (some electronic test equipment needed). This will virtually eliminate downtime and eradicate the annual cost associated with shipping your switch mode power supply back to the factory for calibration.
Limit Protection
The SPS switch mode power supply offers limit protection for over-voltage, over-current, and over-temperature. During an over-limit condition the output is shut down instantly to protect both the unit under power and the power supply.
Stay Current on the Latest Upgrades
The SPS switch mode power supply offers in-field firmware updates to keep your SPS Bonafide up-to-date with the latest features, functions and upgrades.
Designed with Reliability in Mind
Optimized System Heat Dissipation
Front and rear air circulation and strategically placed high-density fans effectively cool high-heat power components to ensure performance under high ambient conditions.
Advanced Remote Fault Monitoring
For lights-out testing and ATE system automation, the SPS Bonafide offers fault dry contact to signal faults in the case of protection mode trips. Remote shut down of the unit is easily achievable via the low-active remote inhibit for interlock and redundant system protection.
Widest Selection of Standard & Customized Programmable Power Supplies
Select from our exclusive 800Vdc and 1000Vdc ratings or over 16 standard models.
Can’t find what you need? AMREL’s outstanding engineering team can provide customizations and modifications to any of the SPS programmable switch mode power supplies. AMREL’s customizations can range from a simple modification, such as a different front panel color, to a complete custom electro-mechanical design. Contact the factory or your local regional salesperson for more information on our customized programmable power supplies.
