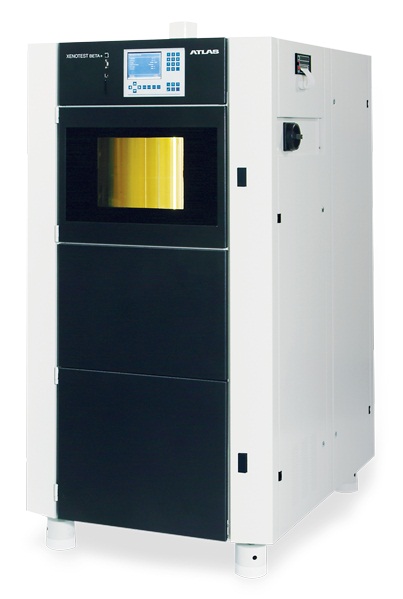

Atlas Material Testing Technology LLC-Xenotest ( Model:Beta+)

The Xenotest Beta+ is a premium stand-alone rotating rack xenon instrument with 4000cm² exposure area. It comes serially with a complete set of parameter controls. Irradiance and temperature are measured and controlled directly on the sample level using on-rack XENOSENSIV sensor technology. Beta+ complies with the vast majority of industry standards. Due to its large test chamber and highly reliable performance, it’s ideal for larger capacities or sample sizes.

Features

• 3x 2200 W air-cooled Xenon Lamps
• 4000 cm² exposure area
• High-irradiance testing up to 120 W/m² (2 Sun)
• Touch screen with colour display to monitor and display test parameters
• Direct Setting and Control of Irradiance (300-400 nm)
• Direct Setting and Control of Black Standard Temperature
• Direct Setting and Control of Chamber Temperature
• Direct Setting and Control of Relative Humidity
• Display of Diagnostic Messages
• Storage for 10 user-defined test methods
• Pre-programmed international standard test methods
• Multilingual User Interface
• Non-aging XENOCHROME filters to simulate outdoor daylight, daylight behind window
• On-rack XENOSENSIV 300-400 nm for measuring and controlling irradiance (in W/m²) and BST (C°) on sample level
• Selectable Temperature control either by Chamber Temperature (max. 70 °C) or by Dual Control: Chamber Temperature and Black Standard Temperature (up to 130 °C)
• Fan-controlled temperature difference between Chamber and Black Standard Temperature
• Ultrasonic humidification system for humidity control
• Specimen spray system with integrated 60 l water reservoir
• Outer cylinder made of Special UV glass
• Switch-off by radiant exposure, light exposure time or total operating time
• Advanced Auto Start functions
• Data output via memory card or RS 232 interface
• Ethernet interface for connection to internal computer network and use of XenoTouch Add-ons 1, 2, and 3

Options
