Atlas – solar and environmental testing (Model :SEC 10 SUN)

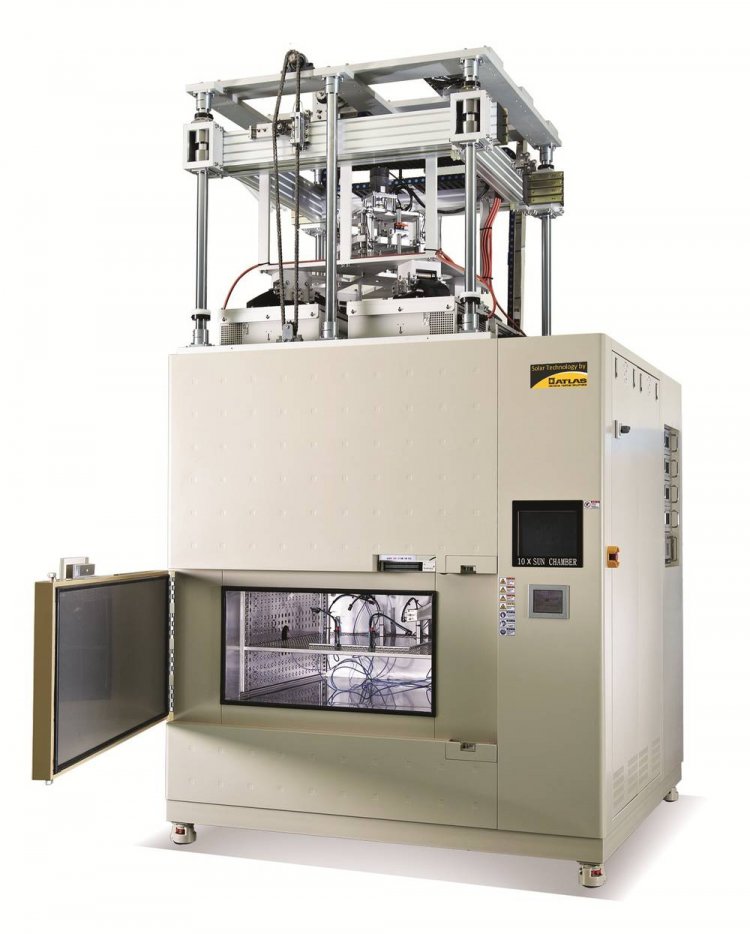

 The SEC 10 SUN is part of the Solar Technology by Atlas market approach offering integrated, ready-to-use test chambers for various solar and environmental applications. The product combines environmental simulation with metal halide lighting technology. The SEC 10 SUN chamber is a very high solar intensity test instrument for accelerated testing. Moving 4 MHG luminaries up and down to high precise linear and angular positions, the SEC 10 SUN instrument offers an adjustable solar irradiation range from 1000 W/m² to 10000 W/m². Mini module cells up to 40 cm x 40 cm can be tested on an exposure plane of 1600 cm² following uniformity Class B.

FEATURES

• Test chamber capacity approx. 14,600L
• Radiation area approx. 25,200 cm²
• Lamp: 9x MHG 4,000W Luminary
• Intensity: 1000W ~ 3,200W / m² (Adjustable)
• Wavelength: 280 ~ 3,000nm(Full Spectrum)
• -10 ~ + 90 °C(W/O Radiation)
• 0 ~ + 90 °C(W/ Radiation)
• 12.1" color touch screen Graphic User interface
• Intuitive control features and easy-to-use programming logic
• 6 Channel DAQ integrated for temperature sensors
• Multi-source temperature control pre-implemented and selectable in user interface
• Pre-wired for BST (Black Standard Temperature) sensor and control
• Pre-wired for plug-and-play radiometer for irradiance measurement
• Galvanized steel with powder coated exterior
• Engineered diffusive reflective stainless steel inner testing chamber for optimum spatial uniformity
• Easy access swing doors to luminary systems
• Robust refrigeration system for precision control of environmental parameters
• Multi-stage safety features

STANDARDS

IEC 60904-9
