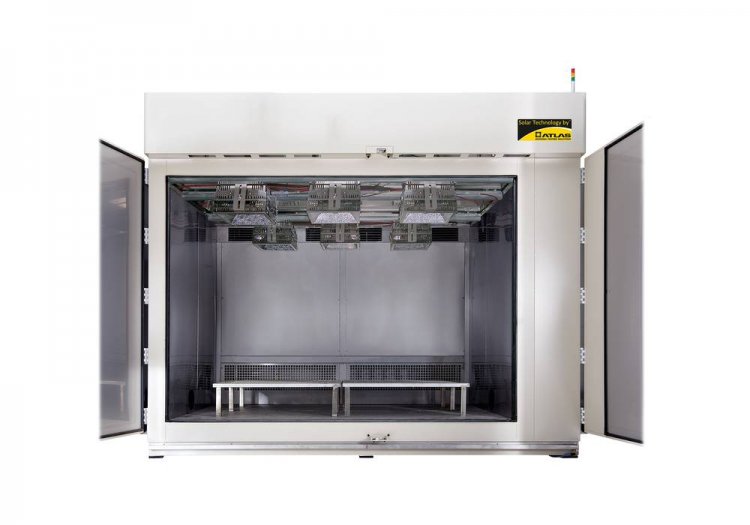

SEC MHUV chambers are integrated, ready-to-use systems equipped with special 1000 W metal halide lamps.
Two chamber sizes are available – the SEC 12000 MHUV offers an exposure area of 1.5 x 2.0 m and the SEC 19000 MHUV has a 2.2 x 2.6 m exposure area. Both chambers offer 3 sun UV irradiance or, as an option, an additional set of MHUV lamps can be installed to obtain 5 sun UV irradiance. Higher UV intensity exposure significantly reduces the total test time and increases sample throughput.
Chamber parameters and irradiance level are controlled by a fully integrated PC unit with a 12" color touch screen user interface.
FEATURES
- Test chamber capacity approx. 12,2 / 19,5 m3
- SEC 12000 MHUV Solar Simulation System Component
- Lamp: 6x MHUV 1000 W luminary
- Intensity: 150 W/m2 (adjustable)
- Wavelength: 280 ~ 400 nm (UV spectrum)
- Exposed area: 2000 x 1500 mm
- Spatial uniformity: ±15 %
- SEC 19000 MHUV Solar Simulation System Component
- Lamp: 12x MHUV 1000 W luminary
- Intensity: 160 W/m2 (adjustable)
- Wavelength: 280 ~ 400 nm (UV spectrum)
- Exposed area: 2600 x 2200 mm
- Spatial uniformity: ±15 %
- Environmental Chamber Component
- SEC 12000 MHUV internal dimensions: 3050W x 2660D x 1500H mm
- SEC 12000 MHUV external dimensions: 3650W x 3940D x 2200H mm
- SEC 19000 MHUV internal dimensions: 3890W x 3340D x 1500H mm
- SEC 19000 MHUV external dimensions: 4490W x 4620D x 2200H mm
- Temperature range: 60°C (with radiation)
- Temperature accuracy: ±5°C
- Condensing type: Air cooled type
- Coolant: CFC Free R-404A, R-23
- Main Instrumentation Features
- 12.1" color touch screen Graphic User Interface
- Chamber and MHUV integrated control
- Intuitive control features and easy-to-use programming logic
- Built-in industrial computer with full Microsoft Windows functionality
- 6 Channel DAQ integrated for temperature sensors
- Multi-source temperature control pre-implemented and selectable in user interface
- Pre-wired for BST (Black Standard Temperature) sensor and control
- Pre-wired for plug-and-play radiometer for irradiance measurement
- Pre-fabricated high insulation polyurethane panel construction
- Double wing type door
- Inner testing chamber optimized for spatial uniformity
- Robust refrigeration system for precision control of environmental parameters
- Multi-stage safety features
- Multi-stage safety features
- CE certified
- IEC 61215 / 61646 UV test capable
- Atlas 25+ UV test capable
- Electrical Voltage:400 V ±10% (3, N, PE) AC, 50/60 Hz
- Other voltages available upon request.
OPTIONS
- Option high intensity UV testing for SEC 12000 MHUV
- Number of installed lamps increased to:12 x MHUV 1000 W luminary
- Increased exposure intensity:250 W/m2 (adjustable)
- Option high intensity UV testing for SC 19000 MHUV
- Number of installed lamps increased to: 20 x MHUV 1000 W luminary
- Increased exposure intensity: 250 W/m2(adjustable)
STANDARD
IEC 61215
Crystalline silicon terrestrial photovoltaic (PV) modules – Design qualification and type approval
