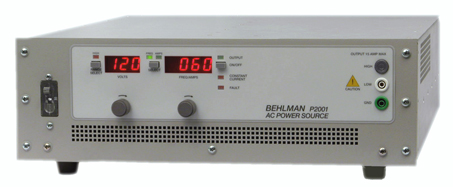

Behlman's P2001 AC Power Supply / Frequency Converter / Inverter delivers 2000 VA of clean, regulated AC power in a 5.25" high bench top unit, that easily converts to rack mount, for far less cost than competitive models. The P2001 can simulate any world wide utility as well as aircraft and shipboard power. Simply select the required frequency from 45 to 500 Hz, choose a voltage range either 0-135 VAC or 0-270 VAC, dial up your desired voltage, and you are ready to test. Options include Remote Control, using either IEEE-488, RS232 or 0-10 VDC and Extended Frequency range. The P2001 delivers all the quality features you have come to expect from Behlman; clean sinewave output with excellent line and load regulation, high efficiency and low harmonic distortion, in the industry's most compact size.
Features
-120Vac In
-0-135 / 0-270Vac out, 15/7.5Amp Isolated
-Dual Range, front panel switch
-2 DVMs , Vac , 2nd for Current and
Frequency
-45 – 500Hz out, constantly variable
-Safety sockets jacks front panel
