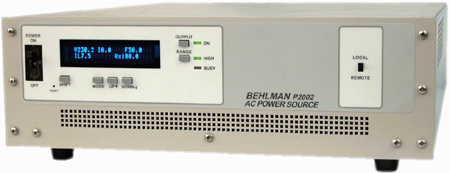

The P2002 incorporates a Direct Digital Synthesizer to create the waveform that produces the clean power of a linear supply with the high efficiency and small size of a switching supply. Innovative protection circuitry provides for voltage fold back during overloads to maintain undistorted waveforms. Power output is a maximum of 2000 VA with 100% of the output available into any power factor load. The P2002 provides for an adjustable output voltage of 0- 135 VRMS or 0 – 270 VRMS and a frequency range of 45 – 500 Hz. The unit features push button controls to allow manual setting of Volts, Frequency, and Current Limit.
The 24 x 2 vacuum fluorescent display allows you to view output Volts, Frequency and Amps plus measurements of Watts and Power Factor. In addition, fault indications for Over Voltage, Over Current, Over Temperature, Constant Current and Short Circuit are displayed. The P2002 comes standard with a RS232 interface for remote control and read back of all parameters.
|
Mechanical Specifications |
|
|
Chassis:
|
High strength bench top chassis
|
|
Dimensions:
|
5.25" H x 17"W x 21"D (13.3 cm X 43.2 cm X 53.3 cm)
|
|
Weight:
|
65 lbs (29.5 Kgs)
|
|
Operating Temperature:
|
0 to 55Degrees Celsius
|
|
Input Connections:
|
Twist-lock receptacle supplied with plug and six foot line cord with unterminated end
|
|
Output Connections:
|
Enclosed terminal block on rear
|
| Remote Interface: | DB-9 connector |
|
Air Flow from Internal Fans:
|
Input: Front & Sides
|
