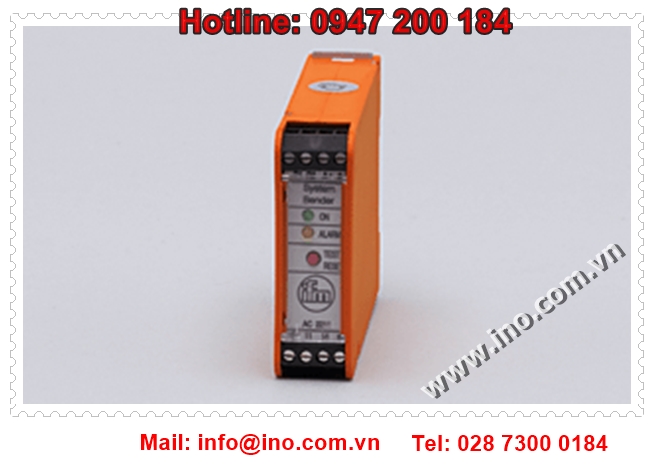

AS-i insulation monitor.
Mounting on DIN rail and panel.
Screw terminal.
Detection of asymmetric insulation faults.
Application |
||||||
Application |
Use for earth fault monitoring in unearthed AS-i and 24 V DC systems (IT system) |
|||||
Electrical data |
||||||
Nominal voltage [V] |
21…36 DC |
|||||
Operating voltage [V] |
26.5…31.6 DC |
|||||
Total current consumption from AS-i [mA] |
< 40 |
|||||
Outputs |
||||||
digital |
||||||
Output function |
2 x normally open |
|||||
Measuring / setting range |
||||||
Measuring principle |
passive |
|||||
Environment |
||||||
Ambient temperature [°C] |
-25…60 |
|||||
Storage temperature [°C] |
-40…70 |
|||||
Protection |
IP 20 |
|||||
Tests / approvals |
||||||
EMC |
|
|||||
MTTF [Years] |
233 |
|||||
AS-i classification |
||||||
AS-i certificate |
19801 |
|||||
Slave equivalent |
standard slave |
|||||
Mechanical data |
||||||
Signal contacts |
1 |
|||||
Weight [kg] |
0.192 |
|||||
Displays / operating elements |
||||||
Power LED |
green |
