Highlights
- Burst module (IEC/EN 61000-4-4) up to 5.5kV
- Surge module (IEC/EN 61000-4-5) up to 5kV
- PowerFail module (IEC/EN 61000-4-11)
- Magnetic field tests with optional accessoires
- Built-in single phase coupler 300V/16A
- Manual operation from front panel
- USB and GPIB-Bus for remote control
- Monitor outputs for peak voltage and peak current
- Fail inputs
- External variac control 0-10Vdc
- Control of external three-phase couplers
Application

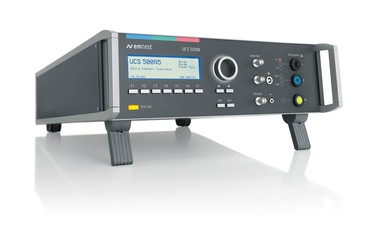

UCS 500N5 – Compact Tester for EFT/Burst, Surge and Power Fail
The UCS 500N5 ultra-compact simulator is the most versatile tester to cover transient and power fail requirements according to international standards (basic and generic standards) and product/product family standards. The UCS 500N5 is the most economic solution for tests during development as well as for full-compliant immunity tests and CE Marking for single phase DUT with the ability to be extended for testing three-phase DUTs by means of an automatically controlled external coupling network up to 100A.
EM TEST supplies a large range of accessories for the various applications such as magnetic field tests.
EM TEST supplies a large range of accessories for the various applications such as magnetic field tests.
Benefits
All in one – All what you need for your tests
The UCS 500N5 includes everything necessary to conduct fully compliant tests. The power mains supply for the controls and for the DUT is separate to render it more flexible to use with different DUT supply voltages.
The UCS 500N5 can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow to control an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.
Pre-programmed Standard Test routines allow highest user convenience. Still the UCS 500N5 offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.
The UCS 500N5 can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow to control an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.
Pre-programmed Standard Test routines allow highest user convenience. Still the UCS 500N5 offers the Quick Start test routine where parameters can be changed on-line during the test to evaluate the susceptibility level of an individual DUT.
