Application:

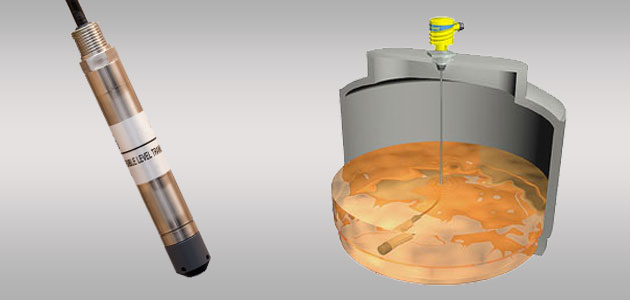

The intrinsically safe submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select the LD31 liquid level sensor for relatively clean water, light weight oil or diluted chemical. Application examples include wet wells and water remediation.
Features:
Corrosion resistant 316 SS body with polyurethane or ETFE cable
Strong cable design with maintenance free breather tube and vent filter
Automatic temperature compensation for accurate measurement
Specifications:
Range: -SX01: 0 to 5 psi (0.34 bar),
0 to 11' (0 to 3.4m) wc
-SX11: 0 to 10 psi (0.69 bar),
0 to 23' (0 to 7m) wc
-SX21: 0 to 15 psi (1.0 bar),
0 to 34' (0 to 10.4m) wc
-SX31: 0 to 20 psi (1.38 bar),
0 to 46'(0 to 14m)
Accuracy: ± 0.25% of full scale
Configuration: None, fixed span
Supply voltage: 10 to 28 VDC
Loop resist.: 900 Ohms @ 28 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: 0° to 176°
C: -18° to 80°
Temp. comp.: F: 0° to 176°
C: -18° to 80°
Proof pressure: 2 x full scale
Weight: 2.2 lb (1.0 kg)
Trans. rating: NEMA 6 (IP67)
Trans. material: 316 SS, 316L SS,
Buna-N & PVC
Trans. thread: 1/2" NPT
Cable type: 2-conductor, shielded
with vent tube
Cable length: -SX01 & SX11: 40' (12.2m)
-SX21 & SX31: 60' (18.3m)
Cable material: -S3X1: Polyurethane (IS)
-S4X1: ETFE (IS)
Classification: Intrinsically safe
Class I Div. 1 Groups A, B,
C & D; Class II Div. 1
Groups E, F & G;
Class III Div. 1T4 @ 80 °C ambient
Compliance: CE, UL Intrinsically safe
to UL standard 913
IEC 61000-4-2:2001
IEC 61000-4-3:2006
IEC 61000-4-4:2004
IEC 61000-4-5:2005
IEC 61000-4-6:2006
IEC 61000-4-8:2001
CENELEC EN 55011:2003
CENELEC EN 61326:2003
89/336/EEC EMC Directive
Parameters: Vmax = 28 VDC
Imax = 93 mA
Ci = 0.051_F
Li = 240_H
Pi = 0.651_W
