Application

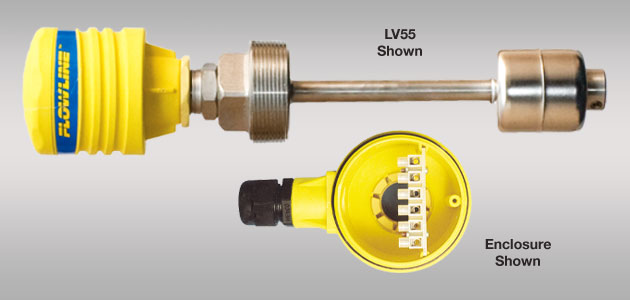

The general purpose float level transmitter provides continuous level measurement up to 6.5' (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels.
Features
High pressure or temperature level measurement up to 6.5' (2m)
Rugged 316 stainless steel float guide and process mounting plug
Assembled to your guide length and measurement span dimensions
Polypropylene junction box rated NEMA 4X with conduit port and terminal strip
– See more at: http://www.flowline.com/floatek.php#sthash.P18dSSjZ.dpuf
Application:
The general purpose float level transmitter provides continuous level measurement up to 6.5' (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels.
Features:
High pressure or temperature level measurement up to 6.5' (2m)
Rugged 316 stainless steel float guide and process mounting plug
Assembled to your guide length and measurement span dimensions
Polypropylene junction box rated NEMA 4X with conduit port and terminal strip
Specifications:
Range: 12" to 6.5' (30cm to 2m)
Accuracy: 0.25% span in water
Configuration: None, fixed span
Orientation: ± 20° from vertical
Specific gravity: 0.55 minimum
Supply voltage: 10 to 30 VDC
Loop resist.: 600 Ohms @ 24 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -40° to 185°
C: -40° to 85°
Ambient temp.: F: -40° to 140°
C: -40° to 60°
Pressure: 200 psi (13.8 bar)
Enclosure rating: NEMA 4X (IP65)
Enclosure mat.: PP, UL94VO
Conduit entrance: Single, 1/2" NPT
Process mount: 2" NPT
Guide-float mat: 316 SS
Classification: General purpose
Compliance: CE
