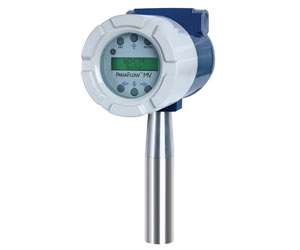

GE’s PanaFlow MV82 insertion multivariable mass vortex flow meter is the next generation of vortex meters. PanaFlow MV82’s multivariable design consists of a vortex shedding velocity sensor, an RTD temperature sensor and a solid state pressure transducer that measures the mass flow rate of steam, gases and liquids. Other meter types use external process measurements to calculate mass flow. The temperature and pressure devices are typically not installed in the same location as the flow meter. Process conditions can vary greatly between the two locations, causing inaccurate mass flow readings. PanaFlow MV82 measures velocity, temperature and pressure at the same location, which provides more accurate process measurement.

Features:

  • Multivariable vortex fl owmeter for measuring volumetric fl ow, temperature, pressure, density, and mass fl ow using a single meter
    Advanced design and digital signal processing for vibration isolation
    Cost eff ective, accurate and reliable meter for volumetric and mass fl ow measurement in most gases, liquids and steam without the need to recalibrate
    Energy management through accurate measurement of both temperature and mass fl ow simultaneously
    Remote monitoring and integration to DCS using HART® and Modbus® communication protocols
    Signifi cant cost savings through reduced installation costs, wiring runs and services support using MV meter with no moving parts
    Certified for Division 1/Zone 1 Explosive Atmospheres ?US/CAN/ATEX/IEC Ex

Application

  • Ideal for high temperature and high velocity steam
  • Power Generation?steam applications
  • Industrial?HVAC, district energy management
  • Commercial?building, campus and facility energy
  • management
  • Oil & gas?allocation of natural gas
  • Petrochemical?mass balancing, reaction processes heating

Specifications

Mass flow rate accuracy for gas and steam

Repeatability

Mass Flow Rate ±0.2% of rate
Volumetric Flow Rate ±0.1% of rate
Temperature ±0.2°F (± 0.1°C)
Pressure ±0.05% of full scale
Density ±0.1% of reading

Stability Over 12 Months

Mass Flow Rate ±0.2% of rate
Volumetric Flow Rate negligible
Temperature ±0.9°F (± 0.5°C)
Pressure ±0.1% of full scale
Density ±0.1% of reading
Response Time Adjustable from 1 to 100 seconds

Operating

Process and Ambient Temperature
Mass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steam
Process Standard Temperature (code ST):e -40 to 500°F
(-40 to 260°C)
Process High Temperature (code HT): Up to 750°F
(400°C)
Ambient Operating: -5 to 185°F
(-20 to 85°C)
Ambient Storage: -40 to 185°F
(-40 to 85°C)
Power Requirements Model MV82-V: 12-36 VDC loop powered
Model MV82-VTP, DC option: 12-36 VDC, 100 mA max
Model MV82-VTP, AC option: 85-240 VAC, 50/60 Hz, 1 Watt
Display Alphanumeric 2 line x 16 character LCD digital display
Six pushbuttons for full field confi guration
Pushbuttons can be operated with magnetic wand without removal of enclosure covers
Display can be mounted in 90° intervals for better viewing
Output Signals Analog: 4-20 mA, loop powered for volumetric meters
Alarm: Solid state relay, 40 VDC
Totalizer Pulse: 50 millisecond, 40 VDC
Volumetric: One analog, one totalizer pulse, HART
Multivariable: Up to three analog signals, three alarms, one totalizer pulse, HART
Multivariable option: Modbus process monitoring

Physical

Wetted Materials 316L stainless steel, plus:

  • PTFE-based thread sealant on models with pressure transducer
  • PTFE packing on standard temperature models with packing gland
  • Graphite-based packing on high temperature models with packing gland

Sizing Considerations

Mass flow rate accuracy for gas and steam

Certifications Explosion-proof for Class I, Division 1, Groups B, C & D
Dust-ignitionproof for Class II, III, Division 1, Groups E, F & G
Type 4x and IP66
T6 Temperature Class at -40°C – +70°C
KEMA ATEX/IEC Ex Approvals II 2 G Ex d IIB + H2 T6
II 2 D Ex tD A21 IP66 T85`C
Velocity Range Maximum velocity, liquid: 30 feet/sec (9 meters/second)
Minimum velocity, liquid: 1 foot/sec (.3 meters/second)
Maximum velocity, gas or steam: 300 feet/sec
(90 meters/second)
Minimum velocity, gas or steam feet/sec (meters/second):
Mass flow rate accuracy for gas and steam
Turndown Turndown is application-dependent. Consult the PanaFlow MV Sizing Program for exact values. Turndown can exceed 100:1.

Mass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steammv82-tbl-7

Dimensional Outline: Compression Fitting Models

Mass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steammv82-tbl-10

Dimensional Outline: Packing Gland Models

Mass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steamMass flow rate accuracy for gas and steam

Dimensional Outline: Packing Gland Models with Permanent Retractor

Mass flow rate accuracy for gas and steam

Dimensional Outline: Remote Electronics Option

Mass flow rate accuracy for gas and steam
