RapportIII
Multi-functional CCTV Tester
|

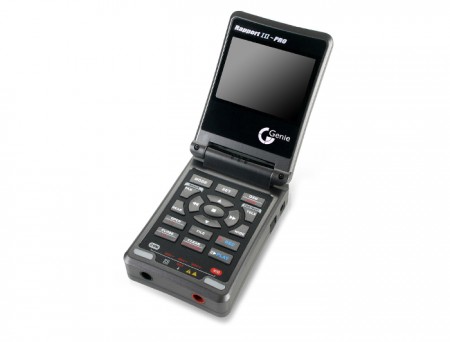

Wonwoo RapportIII Shown |
- Color CCTV Field Monitor
- Video Signal Generator
- PTZ Protocol Analyzer
- Digital Multi Meter
- Test & Measure Voltage
- Resistance
- Continuity
- UTP Cable Tester
- Test for Direct & Cross cable, continuity, discontinuity and Short on UTP cable
- PTZ Controller
- Control for PTZ cameras (Pan, Tilt, Zoom and menu Setup)
- Analyzing control protocol if camera control by external device
- Video Recorder/Tester
- DVR Mode (Rapport III-PRO only)
- MPEG4 Digital Video Recorder allows users to store video inputs on a SD card for future playback (Max. 10mins / 8files)
|
|
The Wonwooo RapportIII Multi-functional CCTV Tester is designed, with portability and serious CCTV engineers in mind, the Rapport III is an advanced piece of video test equipment consisting of many useful test functions needed to professionally install a CCTV system; test functions include Video Level, Service Monitor, Multimeter, UTP Test, PTZ Test, RS-422 and RS-485 Communication Test, etc.
|
|
Functions
|
 |
Color CCTV field monitor |
|
The Wonwoo Rapport3 Multi-function CCTV Tester's built-in 3.5 inch color Digital Type TFT-LCD monitor, supports both PAL & NTSC video signal format. Display video signal level (IRE) is helpful to check the video quality. Brightness & Contrast control.
|
 |
Video signal generator |
|
The Wonwoo Rapport-3 Multi-function CCTV Tester features Video signal generator. The built-in Signal Generator outputs Color bar, Red, Blue and Green screen to allow technician to inspect video monitor or DVR. Support both PAL & NTSC video signal format.
|
 |
Multimeter |
|
The Wonwoo Rapport-III features Digital multimeter combines the most basic instrument include a voltmeter, ohmmeter and continuity tester.
|
 |
PTZ Controller |
|
The Wonwoo Rapport/III features full function of CCTV PTZ Controller. The PTZ Controller controls & programs variety of Speed & Slow Dome cameras. This will allow CCTV installer to test or program PTZ cameras at the actual camera job site. It has multi protocol and programmable baud rate.
|
 |
PTZ Protocol Analyzer |
|
The Rapport III features PTZ Protocol Analyzer, which determines which protocol to control you PTZ cameras from PTZ Controller or DVR. This will guide CCTV installer to understand the protocol and find the fault device easily.
|
 |
UTP Cable tester |
|
Rapport III features UTP Cable Tester which quickly tests a wire's continuity, miswiring and polarization in your network by using an attached remote terminator so you can easily test the cable whether before or after the cable is installed.
|
|
| Specifications |
| Functions |
Description |
Electronic
Characteristics |
Input Voltage |
12V ±10%, above 1.2A |
| Battery |
Lithium Polymer Battery (Inner Packaging) |
| Built-in Charger |
Charging time: More than 6 hrs
Operating time: More than 6 hrs(Max.8hrs) |
| Image |
Signal System |
NTSC / PAL |
| Video Level |
1.0Vp-p, 140 IRE |
PTZ Operation
Test |
Protocol |
Multiple |
| Transmission Speed |
2400 ~ 115.2kbps |
| Transmission Mode |
RS-422 / RS-485 |
| UTP Cable Tester |
Tests |
Continuity / Crossed Cable, and Breaks or Short Circuits |
| Multimeter |
AC Voltage |
Max. 300V |
| DC Voltage |
Max. 300V |
| Resistance |
Max. 40MΩ |
| Continuity |
Beeper is activated when the resistance is below 80Ω |
| Dimension |
88(W) x 126(H) x 40(D) mm |
|
