- For Open Channels and Pipes
- No Flume or Weir Required
- Ultrasonic – Measures Velocity + Level to Calculate Flow
- Measures Forward and Reverse Flow
- 3 Isolated 4-20mA Outputs (Flow, Level and Velocity)
- Totalizer and 2 Control Relays
- Simple 5-key Calibration Password Protected
- Optional Intrinsically Safe Sensor
- Optional built-in 2-million point Data Logger and Software with USB output to Flash Drives

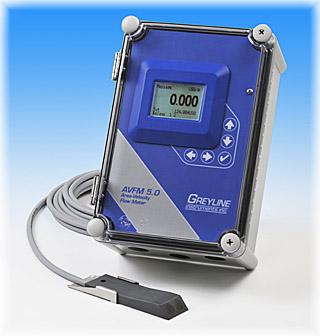

AVFM 5.0 Area-Velocity Flow Monitor
Monitor flow through open channels, partially full sewer pipes and surcharged pipeswithout a flume or weir. Ideal for stormwater, combined effluent, raw sewage, irrigation water and streams. Calibration is simple: enter the pipe diameter or channel shape and the AVFM 5.0 computes the flow volume and displays the flow rate. Measure forward and reverse flow and calibrate to channels of any shape.
The AVFM 5.0 uses a submerged ultrasonic sensor to measure both Velocity and Level in the channel. The sensor is completely sealed with no orifices or ports. It mounts inside a pipe or at the bottom of a channel.
Application Considerations
The AVFM 5.0 is recommended for pipe diameters greater than 6" (150 mm). Maximum pipe diameter or channel width should not exceed 10 ft (3 m) unless flow velocity is evenly distributed across the channel width. Avoid sensor mounting locations where sediment builds up and locations where there is an elevation drop or bend immediately upstream from the sensor. Maximum pipe or channel slope should not exceed 3%.
The AVFM 5.0 measures flow velocity from 0.1 to 20 ft/sec (0.03 to 6.2 m/sec) and reverse flow up to 5 ft/sec (1.5 m/sec)
AVFM 5.0 Installation
See the AVFM 5.0 Area-Velocity Flow Meter in action measuring water flow in a 32-inch
corrugated culvert.
|
|
Greyline Pipe Band Sensor Mounting for Area-Velocity Flowmeters
Do it the easy way – use a stainless steel pipe band for Area-Velocity Flow Meter sensor mounting. You can install the sensor and tie wrap the cable in place before you enter the manhole. Then insert the pipe band into the manhole inlet pipe and tighten the scissor-jack to expand the band for a friction fit inside the pipe. Pipe Mounting Bands are available from Greyline in a range of sizes for common pipe diameters. |
