Outline

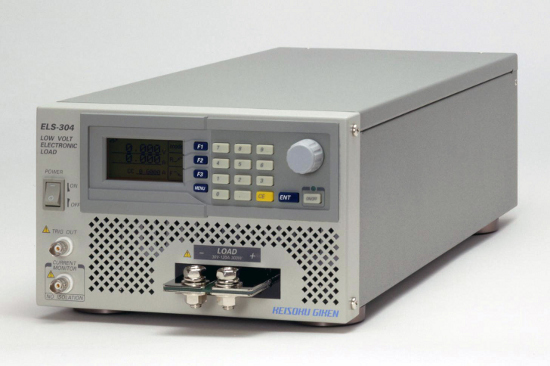

ELS-304 is an electronic load capable of creating ultra high-speed slew rate for applications requiring high-speed dynamic load effect. Our newly developed electronic load circuits implemented in the ELS-304 (Japan Patent No. 3458334, 3470296, and 3477619) enables the internal parasite impedance to decrease and the bandwidth and the slew rate to be remarkably improved, realizing as fast as 200A/us (four times faster than our conventional products) even in a low voltage presented.
In addition, since ringing of load effect is minimized and it is possible to start operating just near zero volt., you can use the ELS-304 for evaluating the dynamic load effect of VRM and POL power supplies. And because the slew rate of rising and falling waveforms can be finely setup, you can use the ELS-304 for the current interrupt testing for fuel cells, etc.
Features
- Maximum power 300W
- Low Voltage input operation
- Slew rate setting up to 200A/us
- Ripple Noise Measurement (Factory Option)
- Current Monitor output (Not isolated)
- GP-IB and USB interface
Application
- Evaluation of VRM and POL power supplies requiring dynamic load effect
- Impedance measurement of condensers for transient response
- Over load characteristic test of low volt./large current switching power supplies
- Discharge test of solar batteries and lithium ion batteries
