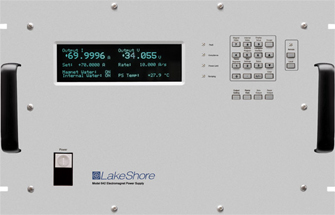

The Model 642 electromagnet power supply is a linear, bipolar current source providing true 4-quadrant output, eliminating the need for external switching or operator intervention to reverse current polarity. The Model 642 is capable of supplying ±70 A/±35 V to a nominal 0.5 W, 0.5 H load, and the output can be modulated from an external source to frequencies up to 0.17 Hz at ±70 A. Internally programmed output provides 20-bit resolution, while externally programmed output provides unlimited resolution. |
|
|
|
The compact, low noise design of the Model 642 makes it the ideal supply for use in laboratory settings. When combined with a Lake Shore EM4 4-inch electromagnet and Model 475 DSP gaussmeter, the Model 642 provides a versatile field control system ideal for a wide range of user defined applications. These include but are not limited to magneto-optical, magnetic hysteresis and susceptibility, and Hall effect measurements, as well as in-line annealing |
-
Bipolar, linear, true 4-quadrant output
-
±70 A/±35 V, 2.5 kW
-
Can be modulated to frequencies up to 0.17 Hz
at ±70 A -
Low noise
-
0.1 mA of programmed current resolution
-
Analog programming and IEEE-488 and RS-232C interfaces
-
Built-in fault protection
-
Compact design
