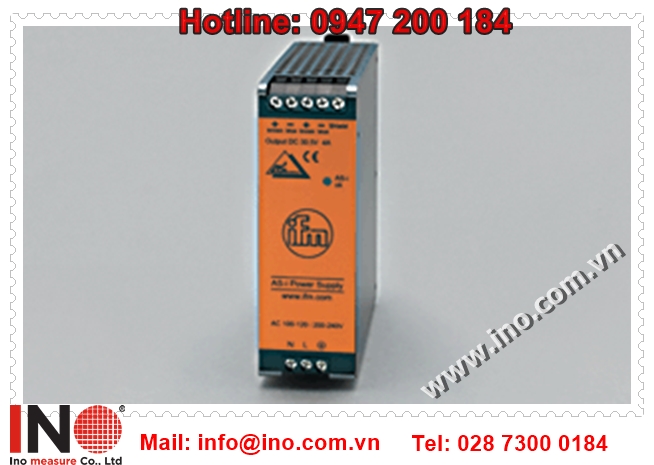

PSU-24VDC/ASi-4A.
datasheel.
|
Product characteristics |
||||||||||
|
Power supply |
||||||||||
|
DC convertor 24 V DC for AS-i system voltage |
||||||||||
|
Integrated data decoupling |
||||||||||
|
Application |
||||||||||
|
Application |
AS-i system voltage for masters, sensors, actuators and modules |
|||||||||
|
Electrical data |
||||||||||
|
Input voltage range [V] |
24 DC; – 25 % / + 35 % |
|||||||||
|
Nominal voltage [V] |
24 DC |
|||||||||
|
Output voltage (AS-i) [V] |
30.5 DC |
|||||||||
|
Output power [W] |
122 |
|||||||||
|
Output power peak [W] |
134; briefly to load bus capacities after power on |
|||||||||
|
Power reserve [%] |
10 |
|||||||||
|
Output current (AS-i) [A] |
4 |
|||||||||
|
Residual ripple [mVpp] |
< 50 |
|||||||||
|
Switch-on peak current [A] |
2 (24 V DC) |
|||||||||
|
Inrush current limitation |
yes |
|||||||||
|
Efficiency [%] |
90.5 (24 V DC) |
|||||||||
|
Short-circuit proof |
yes |
|||||||||
|
Overload protection |
yes |
|||||||||
|
Overload performance |
constant output current |
|||||||||
|
Overvoltage protection [V] |
< 36 |
|||||||||
|
Excess temperature protection |
yes |
|||||||||
|
External input protection |
≤ B-10 A / ≤ C-8 A |
|||||||||
|
Power-on delay time [ms] |
≤ 650 |
|||||||||
|
Derating [W/K] |
3 (60…70 °C) |
|||||||||
|
Mains buffering time [ms] |
6 (24 V DC) |
|||||||||
|
Protection class |
III |
|||||||||
|
Input current [A] |
5.5 (24 V DC) |
|||||||||
|
Power loss [W] |
12.7 (24 V DC) |
|||||||||
|
Back feeding protection [V] |
≤ 35 DC |
|||||||||
|
Block diagram |
||||||||||
|
Output curve |
||||||||||
|
Characteristic curve for degree of efficiency / power loss |
||||||||||
|
Characteristic curve for derating |
||||||||||
|
Characteristic curve for mains buffering time |
||||||||||
|
Outputs |
||||||||||
|
Parallel connection of outputs |
no |
|||||||||
|
Series connection of outputs |
no |
|||||||||
|
Environment |
||||||||||
|
Ambient temperature [°C] |
-25…70, observe the free space for convection (see operating instructions) |
|||||||||
|
Storage temperature [°C] |
-40…85 |
|||||||||
|
Max. relative air humidity [%] |
95, (IEC 60068-2-30) |
|||||||||
|
Protection |
IP 20 |
|||||||||
|
Degree of soiling |
2; (IEC 62103) conductive soiling not permitted |
|||||||||
|
Tests / approvals |
||||||||||
|
EMC |
|
|||||||||
|
UL |
UL 508 (Industrial Control Equipment) |
|||||||||
|
Shock resistance |
|
|||||||||
|
Vibration resistance |
|
|||||||||
|
MTBF [h] |
1247000 |
|||||||||
|
AS-i classification |
||||||||||
|
AS-i certificate |
98801 |
|||||||||
|
Mechanical data |
||||||||||
|
Housing materials |
steel sheet |
|||||||||
|
Installation |
rail TH35 (to EN 60715) |
|||||||||
|
Weight [kg] |
0.597 |
|||||||||
|
Displays / operating elements |
||||||||||
|
Function display LED |
green (indication AS-i voltage) |
|||||||||
|
Electrical connection |
||||||||||
|
Connection |
screw terminals |
|||||||||
|
Wiring
|
||||||||||
