Key Facts
- Suitable for all interfaces: analog, digital and combined
- HDMI device testing
- Parallel measurements on up to eight channels
- Up to 80 kHz bandwidth and 200 kHz sampling rate
- User-programmable filters for analyzer and generator
- Compact instrument with integrated PC and low height
Brief Description
High measurement speed, parallel signal processing in multichannel applications, and high reliability in continuous operation are vital requirements to be met by audio analyzers for use in production.
The R&S®UPV audio analyzer – the high-end instrument from Rohde & Schwarz – has held a solid position in all audio T&M applications for years. Measurement accuracy and dynamic range at the limits of what is possible, combined with unique measurement capabilities, make the R&S®UPV ideal primarily for research, development and quality assurance tasks.
Many audio applications do not place such high requirements on dynamic range and versatility. The emphasis in production is often on high throughput, and the cost of production test assemblies also plays a major role. When testing consumer audio equipment, multichannel devices of surround-sound systems must also be measured using state-of-the-art interfaces such as HDMI. This is where the R&S®UPP audio analyzer family comes into its own. Depending on the model, two, four or eight channels are processed in parallel; and by cascading multiple instruments, users can simultaneously trigger up to 48 measurement channels, which cuts down on measurement time.

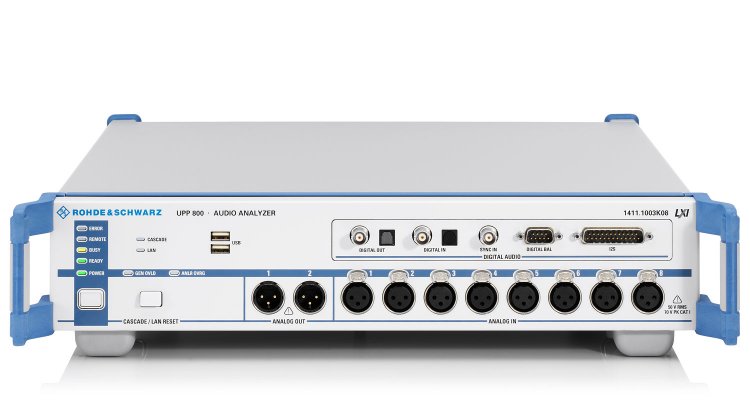

The compact cost-efficient R&S®UPP audio analyzer is designed for system applications. It features low height, and comes without front-panel control elements or integrated display. The instrument can be remote-controlled via LAN, USB or IEC/IEEE bus. In combination with an external monitor, mouse and keyboard, it becomes a manually operable measuring instrument for a lab bench. It has an integrated control PC, and the required software is already installed. Users can start taking measurements right away.
Featuring the same operating philosophy and remote control, the R&S®UPV and R&S®UPP audio analyzers are a strong team: They provide the optimal solution for both R & D and production, respectively, and harmonize well together, for example when instrument settings or measurement routines have to be exchanged.
Features & Benefits
-
Powerful and fast
- Parallel measurements for high throughput
- High measurement speed throughout the system
- Ideal for use in production
- Multichannel measurements by means of cascading
-
All test signals and measurement functions in a single box
- Generation of a wide variety of analog and – with the R&S®UPP-B2/B4 option – also digital test signals
- Broad scope of measurements on both analog and – with the R&S®UPP-B2/B4 option – digital interfaces
- Powerful and even multichannel FFT analysis with resolution down to the mHz range
- User-programmable filters that can be adapted in seconds to the individual measurement task
- Integrated control PC; manual operation requires only an external monitor and a mouse and keyboard
-
Large variety of interfaces offered in a single instrument
- Two-, four-, or eight-channel analyzer with analog inputs
- Analog generator outputs (two-channel)
- AES/EBU and S/P DIF interfaces for measuring digital audio components (R&S®UPP-B2 option)
- I²S interfaces for testing audio ICs (R&S®UPP-B2 option)
- HDMI device testing (R&S®UPP-B4 option)
- Interfaces for the generator and analyzer can be set independently of one another and used together in any combination
-
Convenient operation throughout
- State-of-the-art and intuitive user interface makes operation quick and easy to learn
- All measurement results at a glance
- Effective online help functions
-
Options for further applications
- R&S®UPP-B2 option providing digital audio interfaces in line with AES/EBU and S/P DIF as well as I²S interfaces
- R&S®UPP-K21 digital audio protocol
- R&S®UPP-B4 HDMI and digital audio interfaces
- R&S®UPP-K41 Dolby© decoding
- R&S®UPP-K45 extended audio/video measurements
- R&S®UPP-K601 1/n octave analysis
- R&S®UPP-K800 cascading software for combining multiple R&S®UPP Audio Analyzer audio analyzers for parallel measurement of more than eight channels
- XLR/BNC adapter sets
- Connecting cables for digital interfaces
- R&S®UPZ audio switcher for switching input and output channels
