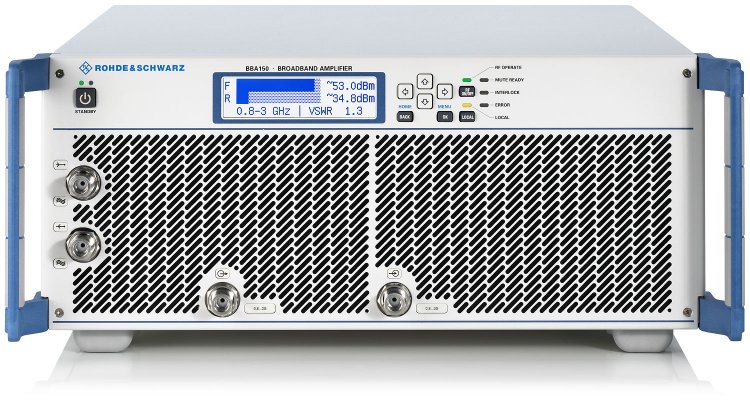

Rohde-schwarz- Broadband Amplifier (Model:R&S®BBA150)

By
-
7
587
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

Key Facts

  • Two frequency ranges from 0.8 GHz to 3.0 GHz and 2.5 GHz to 6.0 GHz
  • Output power from 15 W to 200 W
  • Ideal for system configuration together with the R&S®BBA100 broadband amplifier family
  • 100 % mismatch tolerance
  • Suitable for amplitude, frequency, phase and pulse modulation
  • Three-year warranty and worldwide spare parts availability

Brief Description

The R&S®BBA150 is a new family of broadband amplifiers for the microwave range. The instruments, which are optimized for high frequencies, offer high power, yet are compact and lightweight. In combination with the field-tested R&S®BBA100 broadband amplifier family, amplifier systems from 9 kHz to 6 GHz including various RF switching options can be set up.

Features & Benefits

  • The most advanced broadband amplifier on the market

    • Sophisticated RF design
    • Compact and lightweight
    • Series production

  • Reliable with high availability

    • Outstanding expertise in amplifier development
    • Cost benefit due to little downtime

  • Flexible control and operation

    • Manual operation
    • Local and remote operation via web browser and PC
    • Integration into the R&S®EMC32 measurement software
    • Remote control via Ethernet
    • Safety thanks to two different interlocks

  • Two families – one amplifier system

    • Perfect integration
    • RF switching options

  • Excellent service and quick maintenance

    • Outstanding service concept
    • Extended warranty for maximum protection of investment
    • From pre-sale to service – at your doorstep

Specifications

RF specifications
Frequency range 0.8 GHz to 3.0 GHz, instantaneously;
2.5 GHz to 6.0 GHz, instantaneously
Nominal power classes 0.8 GHz to 3.0 GHz 30 W (44.8 dBm),
60 W (47.8 dBm),
110 W (50.4 dBm),
200 W (53.0 dBm)
2.5 GHz to 6.0 GHz 15 W (41.8 dBm),
30 W (44.8 dBm),
60 W (47.8 dBm),
100 W (50.0 dBm)
Nominal output load 50 Ω
Gain flatness ±3.0 dB (or better, see data sheet)
Gain adjustment range > 15 dB
Spurious –80 dBc (nom.), max. –70 dBc
Modulation capability AM, FM, φM, PM
Nominal input impedance 50 Ω
Input level for nominal output power –3.4 dBm
Nominal output impedance 50 Ω
Output mismatch protection 100 %
RF sample and detected sample signals
RF sample signal coupling factor RF forward and reflected sample ports, optional approx. 46 dB (see test report for details)
Detected sample signal level detected forward and reflected sample ports, optional 0.8 V to 2.6 V DC
RF and sample connectors
RF input port either front panel N female
or rear panel N female
RF output port either front panel N female
or rear panel N female
RF sample ports forward output power, optional N female
reflected output power, optional N female
Detected sample ports forward output power, optional N female
reflected output power, optional N female
Graphical user interface
Local graphical display 200 × 48 pixel, monochrome
Web GUI via Ethernet RJ-45, 10/100 Mbit/s, autonegotiation, half/full duplex
Remote control
Ethernet RJ-45, 10/100 Mbit/s, autonegotiation, half/full duplex
General data
Operating voltage range 100 V to 240 V AC ± 10 %, single phase, 50 Hz to 60 Hz ± 6 %
Power consumption depending on power class max. 2.0 kVA
Air cooling forced air, built-in fans, air entry at front, air exit at rear
Dimensions W × H × D, incl. fans, handles and feet 430 mm × 196 mm × 580 mm
(16.93 in × 7.72 in × 22.83 in)
for rackmounting 19" 1/1, 4 HU
Environmental conditions
Temperature loading operating temperature range 0 °C to +40 °C
storage temperature range –20 °C to +70 °C
Damp heat max. +40 °C at 95 % rel. humidity, without condensation
Altitude operating altitude up to 2000 m
storage altitude up to 4600 m
Protection
Input overdrive without damage max. +15 dBm
Load VSWR infinite
Interlock 1 device interlock, 1 configurable interlock
Input protection against bias voltage optional DC block level ≤ 50 V DC
Transient voltage compatibility category II, in line with IEC 60364-4-443
Short-circuit breaking capacity automatic all-pole 20 A circuit breaker
Thermal overload shutdown at +50 °C ambient temperature
