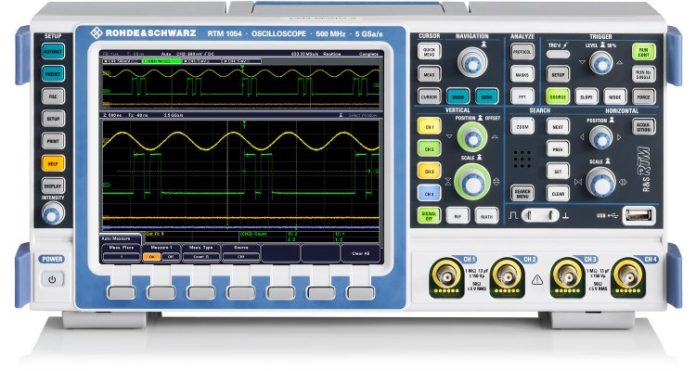

Rohde-schwarz- Digital Oscilloscopes (Model:R&S®RTM1000)

By
-
5
478
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

Compact, precise, versatile
Due to their excellent measurement properties and wide variety of practical functions, the R&S®RTM oscilloscopes facilitate daily work, whether in product development or service. Their compact dimensions, simple operation and brilliant display make them the first choice for everyday test and measurement tasks.

  • Finding signal faults quickly and effectively
  • Tools for fast signal analysis
  • Smart operating concept
  • Reliable results for stringent demands
  • Triggering and decoding of serial protocols

  • Finding signal faults quickly and effectively

    • Extensive triggering options for keeping track of important signal events
    • Highlighting of rare events simplifies debugging
    • Optimal overview: X-Y(-Z) mode
    • Versatile selection of signal acquisition modes
    • "Smooth" mode for smoothing non-periodic signals

  • Tools for fast signal analysis

    • Detailed analysis made easy: with zoom function and event marker
    • QuickMeas – key results at the push of a button
    • Extensive cursor-based measurement functions
    • FFT – signal analysis in the frequency domain
    • Mask tests for revealing signal deviations

  • Smart operating concept

    • Color-coded controls for clear overview
    • Flat menu structures and dedicated buttons for getting work done quickly
    • High-resolution XGA display – perfect for even the finest details
    • Connectivity
    • Portable due to compact design

  • Reliable results for stringent demands

    • High time resolution – even for long signal sequences
    • Excellent measurement accuracy due to low-noise frontends
    • Full measurement bandwidth, even at 1 mV/div
    • No crosstalk thanks to good channel-to-channel isolation
    • Precise measurement of steep edges using passive probes

Specifications

Vertical system
Input channels R&S®RTM1052 2
R&S®RTM1054 4
Bandwidth (–3 dB) at 50 Ω 500 MHz
Rise time (calculated) 700 ps
Input impedance 50 Ω ±1.5 % or
1 MΩ ±1 % with 13 pF±1pF
Input sensitivity max. bandwidth in all ranges 50 Ω: 1 mV/div to 1 V/div
1MΩ: 1 mV/div to 10 V/div
Resolution 8 bit
Acquisition system

Max. realtime sampling rate

 2.5 Gsample/s; 5 Gsample/s interleaved
Memory depth 4 Msample; 8 Msample interleaved
Decimation modes combination of decimation mode and waveform arithmetics possible sample, peak detect, high resolution
Waveform arithmetics off, envelope, average, smooth, filter
Interpolation sin(x)/x
Horizontal system
Time base range 1 ns/div to 50 s/div
Time base accuracy 10 ppm
Channel deskew ±100 ns
Trigger system
Trigger types edge, width, video, pattern, B-trigger
optional: I2C, SPI, UART/RS-232, CAN/LIN
Trigger level ± 10 div from center of screen
Analysis and measurement functions
QuickMeas at the push of a button, measurement values available internally are written directly onto the waveform and updated continuously peak-to-peak voltage, pos. peak, neg. peak, rise time, fall time, mean value, RMS value, period, frequency
Automatic measurements mean value, RMS value, mean cycle, RMS cycle, std. deviation wave, std. deviation cycle, amplitude, top level, base level, pos. overshoot, neg. overshoot, peak-to-peak voltage, pos. peak, neg. peak, period, frequency, delay, phase, burst width, number of pulses, number of neg. pulses, number of rising edges, number of falling edges, pulse width, inverted pulse width, duty cycle, neg. duty cycle, rise time, fall time, trigger period, trigger frequency
Cursor measurements voltage, time, voltage & time, ratio X, ratio Y, number of pulses, peak value, RMS value, mean value, duty ratio, burst width, rise time, fall time, vertical marker
Waveforms maths addition, subtraction, multiplication, division, maximum, minimum, square, square root, magnitude, positive wave, negative wave, reciprocal, inverse, integral, differentiation, log10, ln, lowpass filter, highpass filter, FFT
General data
Dimensions W x H x D 403 mm x 189 mm x 142 mm
(15.87 in x 7.44 in x 5.59 in)
Weight 4.9 kg (10.8 lb)
Display 8.4" XGA TFT color display,
(1024 x 768 pixels)
Connectivity 2 x USB host, USB device, LAN, GPIB (optional), DVI-D for external monitor

Resource & Download

Data Sheet
