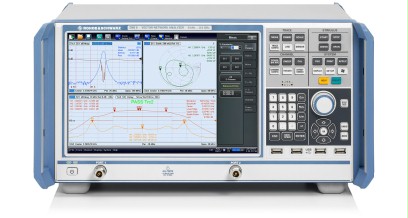

Rohde-schwarz-Vector Network Analyzer (Model:R&S®ZNB )

By
-
6
495
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

Key Facts

  • Frequency range from 9 kHz to 40 GHz
  • Wide dynamic range of up to 140 dB
  • Short sweep times of 4 ms for 401 points
  • High temperature stability of typ. 0.01 dB/°C
  • Wide power sweep range of 98 dB
  • Wide range of IF bandwidths from 1 Hz to 10 MHz
  • Manual and automatic calibration
  • Large, high-resolution 12.1" screen
  • Touchscreen user interface
  • Two or four test ports
  • Four-port model with two independant generators

Features & Benefits

  • Designed to meet the highest standards

    • Wide dynamic range from 9 kHz for fast measurements on high-blocking DUTs
    • Excellent raw data for high basic accuracy
    • High temperature stability for long calibration intervals
    • Fast synthesizers for high measurement speed

  • Convenient characterization of active and passive RF components

    • Fast embedding/de-embedding for impedance matching using virtual networks
    • Mixed-mode S-parameters for balanced DUT characterization
    • Extensive analysis functions for convenient trace analysis
    • Amplifier measurements with wide power sweep range and receiver step attenuators
    • Time domain analysis for distance-to-fault (DTF) measurements and filter adjustment
    • Frequency conversion measurements on mixers and amplifiers – fast and simple with two independent internal generators

  • Network analysis made easy

    • Flat and clear menu structures for efficient operation
    • Optimal display configuration for each measurement task

  • Simple calibration – manual or automatic

    • The right calibration method for every test application
    • TSM (Through, Short, Match) – full calibration in only five steps
    • Simple and error-free – automatic calibration in 30 seconds

  • Measurements with up to 32 ports

    • More ports by use of switch matrices
    • Easy configuration at the push of a button
    • Automatic calibration units for accurate measurements

  • High throughput in production

    • Short measurement times
    • High measurement speed due to wide dynamic range and optimized IF bandwidths
    • Segmented sweep for high speed and accuracy
    • Fast switching between instrument setups

  • A worthwhile investment

    • Ready for the future
    • Upgrading test systems without rewriting system software
    • An analyzer that speaks the user's language

Brief Description

More than 60 years of experience in the field of vector network analysis pay off: Rohde & Schwarz once again sets new benchmarks – with the R&S®ZNB vector network analyzers. The new family of network analyzers features high measurement speed, outstanding precision and exceptional ease of operation.

Resource & Download

Lưu ý: Nếu một thiết bị nào đó không được liệt kê ở đây, điều đó không có nghĩa rằng chúng tôi không hỗ trợ được bạn về thiết bị đó. Hãy liên hệ với chúng tôi để biết danh sách đầy đủ về thiết bị mà chúng tôi có thể hỗ trợ và cung cấp.
INO: Bán, Báo giá, tư vấn mua sắm và cung cấp, tư vấn sản phẩm thay thế; tương đương, hướng dẫn sử dụng, giá…VNĐ, …USD info@ino.com.vn | 086 9421303 | 02873000184 | Rohde-schwarz-Vector Network Analyzer (Model:R&S®ZNB ).
