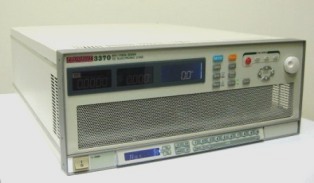

3370 has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current
‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
‧Single key for OCP 、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
‧Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
‧150 sets test parameter and status storage function, user can call the storage memory real time in accordance with the auto sequence requirement.
Compact size (483Wx177Hx635Dmm) possess 5KW/1000A Electronic Load capability
⊙ Power ON status can be set
⊙ 5 digit V/A/W Meter
⊙ CC, CR, CV, CP, Dynamic and Short operation mode
⊙ High-speed measurement and communication transmission
⊙ SHORT time setting
⊙ Large LCD Display、setting values can be adjusted by rotary knob or push button
⊙ Protections against V,I,W, and ℃
⊙ Voltage 、Current and Watt value can be displayed simultaneously
⊙ Voltage meter display the polarity positive (”+”）or negative（”－”）is selectable
⊙ OCP 、 OPP test function
⊙ Optional Interface: GPIB、RS232、USB、LAN
