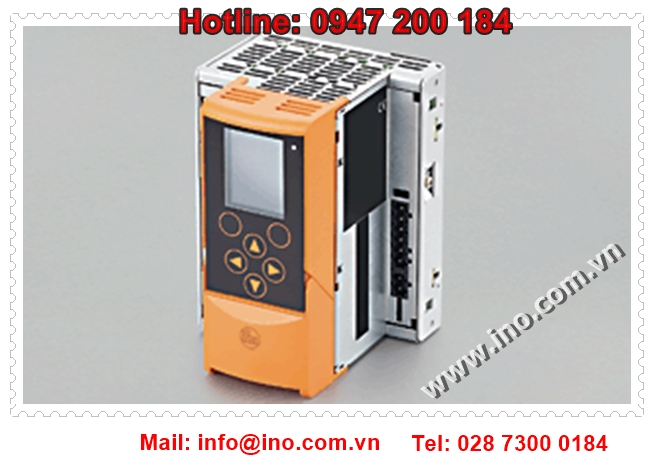

SmartPLC DataLine with EtherCAT slave interface.
Housing for DIN rail mounting.
AS-i master
Ethernet configuration interface with dynamic web interface for configuration and diagnosis including remote maintenance.
LCD colour display.
Device supply either via 24 V or AS-i (AS-i bus 1).
|
Application |
||||
|
Application |
standard PLC and/or AS-i / EtherCAT gateway |
|||
|
Electrical data |
||||
|
Number of AS-i masters |
1 |
|||
|
Operating voltage [V] |
18…32 DC (AUX) / 21…31.6 DC (AS-i) |
|||
|
Current consumption from 24 V DC and AS-i [mA] |
< 500 (24 V) / < 10 from AS-i 1 |
|||
|
Current consumption from AS-i (without external supply) [mA] |
< 500 via AS-i 1 |
|||
|
Electrical separation |
yes |
|||
|
Outputs |
||||
|
External voltage supply |
according to PELV |
|||
|
Interfaces |
||||
|
Programming interface |
Ethernet |
|||
|
Data interface |
EtherCAT slave, max. 100 Mbaud |
|||
|
Environment |
||||
|
Ambient temperature [°C] |
0…60 |
|||
|
Storage temperature [°C] |
-20…70 |
|||
|
Protection |
IP 20 |
|||
|
AS-i classification |
||||
|
AS-i version |
3.0 |
|||
|
AS-i profile |
M4 |
|||
|
AS-i certificate |
97304 |
|||
|
Mechanical data |
||||
|
Housing materials |
aluminum powder-coated; steel sheet galvanised; Makrolon |
|||
|
Weight [kg] |
0.701 |
|||
|
Displays / operating elements |
||||
|
Display |
|
|||
|
Function display LED |
1 x red / green (combined LED) |
|||
|
Electrical connection |
||||
|
Connection |
terminals up to 2.5 mm² |
|||
|
