Features:
- Hand Held Instrument
- Easily locates shorted bolts, replaces bolt to bolt
- Use on structure with or without CP
- Uses Radio Frequency to test effectiveness of above ground insulators
- Auto Shut-Off feature
Includes:
Model RF-IT Instrument Kit Includes:
- Probe, Red with lead wire and needle point tip
- Probe, Black with needle point tip
- Additional needle tips, stored in small black vinyl tubes
- (6) AA Batteries
- Instructions Manual
- Warranty Card

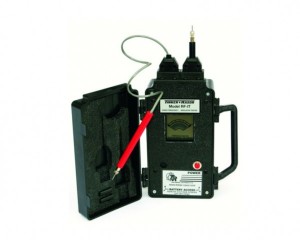

The Model RF-IT is a highly sensitive device used to test above ground pipeline insulators. This affordable unit is also fantastic for flange bolts shorts. The automatic RF-IT allows the operator to pinpoint the precise contact point. The RF-IT emits an audible beep. When the operator gets closer to the point of contact the unit starts beeping faster. At the same time, the sliding scale LCD meter moves from right to left.
Use:
Test above ground pipeline insulators to pinpoint the precise contact point. The RF-IT emits an audible beep. When the operator gets closer to the point of contact the unit starts beeping faster. At the same time, the LCD meter moves from left to right.
Specifications:
- Battery Operated
- (6) Alkaline "AA" batteries (replaceable)
- Cables and probes included
Dimensions:
Operating:
8" x 4" x 3", 2 lbs. (203mm x 101.6mm xc 76.2mm, 0.907kg)
