The ENV100‐P Ultrasonic Portable Sludge Blanket Level Meter manufactured by WESS, utilizes enhanced ultrasonic technology to measure the sludge interface level in various types of clarifiers, settling tanks and thickeners with superior accuracy and reliability. The portable meter is designed to offer economic operation where dozens of clarifiers exist. User can suits the meter to their specific requirement and field conditions with respective internal data memory and get all measurement data throughout RS232 portafter field visits.
Different from optic measurement device, the user do not need to contact contaminated cable because the ultrasonic sensor is floating on the wastewater. Since the meter has all additional features the same as fixed model, ENV100‐S/M, user can get accurate and reliable measurement result all the time.
Product Features
|
Measuring Principle
|
Ultrasonic Echo Flight Time
|
|
Measuring Range
|
0.35 ~ 10m(1~33ft)
|
|
Resolution
|
1cm(metric units), 0.1ft(UK units)
|
|
Accuracy
|
+/- 0.5% of measured range or 1 inch, whichever is greater
|
|
Operational Temperature
|
-20 ~ 70°C(-4~158°F)
|
|
Outputs
|
Digital: RS232C
|
|
Power Supply
|
3EA X AA Lithium ion rechargeable battery
|
|
Enclosure Material
|
Aluminum
|
|
Dimension
|
143(W) x 195(H) x 56(D)mm
|
|
Weight
|
1.5 kg
|
|
IP Rating
|
IP65
|
|
Screens
|
Numeric, Echo Profile
|
|
Display
|
Sludge Level, Distance, Temperature, Present Time
|
|
Certificate
|
CE
|
|

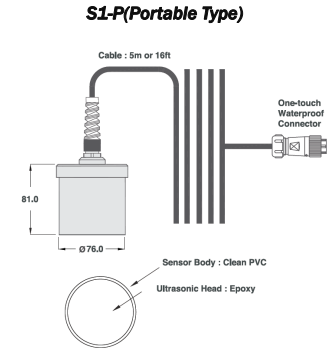

Material
|
Probe body : Clean PVC, Ultrasonic Head : Epoxy
|
|
Cable Length
|
5m(17ft)
|
|
Operational Temperature
|
-10 ~ 60°C(14 ~ 140°F)
|
|
Beam Angle
|
5 degree
|
|
Frequency
|
160kHz
|
|
Weight
|
700kg
|
|
IP Rating
|
IP68
|
