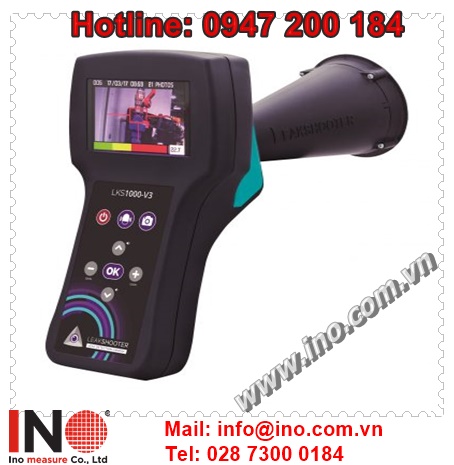

LEAKSHOOTER LKS 1000 – V.3

 Thiết bị Phân Tích Và Theo Dõi Quá Trình Hoạt Động Của Bẫy Hơi – LEAKSHOOTER LKS 1000 – V3

LEAK SHOOTER LKS1000 V3 ứng dụng công nghệ phát hiện sóng siêu âm ngoài tính năng phát hiện rò rỉ khí nén, khí gas,…

Ultrasonic compressed air, gaz and vacuum leak detector with camera. Compressed air is a costly form of energy and 20 to 40% of it is lost through leaks. Systematically checking for and eliminating leaks can therefore bring considerable energy savings. Film, view and photograph the precise spot where compressed air, steam, pressurised gas and vacuums are leaking using the LEAKSHOOTER LKS1000-V.2. The LEAKSHOOTER LKS1000-V.2 is a sophisticated tool. Extremely sensitive, it is capable of finding all leaks, even the smallest, including those no bigger than the size of a syringe needle, at a distance of 15 metres. Leaks can be detected in all types of industrial environment thanks to the possibility of adjusting the gain on the device to filter out all undesirable noise. The LEAKSHOOTER LKS1000-V.2 is used like a camera. When it comes near a leak, a dynamic yellow target appears on the large colour screen. The target turns red and shrinks as it approaches the source of the leak. A bar graph at the bottom of the screen accompanies and facilitates the search. When the device is facing the leak, a cross appears in the centre of the target. It is then possible to photograph and save the precise location of the leak.
