AOIP-LOW RESISTANCE MEASUREMENTS (Model: OM10/OM16/OM21/OM22)

By
-
150
814

AOIP Basic tool OM10

•  Accuracy: 0.05% of reading + 5 digits

•  Protection 250 V against surges

•  Voltage measurement: 0 to 400 V DC

•  Power supply: battery and external charger

• 10 µohms to 50 kohms, with currents from 100 mA to 0.1 mA • Accuracy: 0.05% of reading + 5 digits • Protection 250 V against surges • Voltage measurement: 0 to 400 V DC • Power supply: battery and external charger • Portable, light-weight (1.2kg) and robust

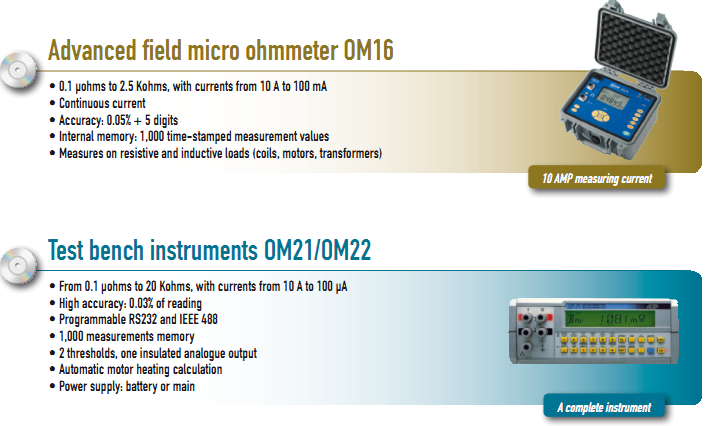

AOIP Advanced field micro ohmmeter OM16

•  0.1 µohms to 2.5 Kohms, with currents from 10 A to 100 mA
•  Continuous current
•  Accuracy: 0.05% + 5 digits
•  Internal memory: 1,000 time-stamped measurement values
• Measures on resistive and inductive loads (coils, motors, transformers)
• 0.1 µohms to 2.5 Kohms, with currents from 10 A to 100 mA • Continuous current • Accuracy: 0.05% + 5 digits • Internal memory: 1,000 time-stamped measurement values • Measures on resistive and inductive loads (coils, motors, transformers)
AOIP Test bench instruments OM21/OM22
•  From 0.1 µohms to 20 Kohms, with currents from 10 A to 100 µA
•  High accuracy: 0.03% of reading
•  Programmable RS232 and IEEE 488
•  1,000 measurements memory
•  2 thresholds, one insulated analogue output
•  Automatic motor heating calculation
•  Power supply: battery or main
• From 0.1 µohms to 20 Kohms, with currents from 10 A to 100 µA • High accuracy: 0.03% of reading • Programmable RS232 and IEEE 488 • 1,000 measurements memory • 2 thresholds, one insulated analogue output • Automatic motor heating calculation • Power supply: battery or main
Typical Application Field
Energy field: cables and cable joints, motors, transformers for coil resistance and self-heating tests.

Manufacturers of low-power electronic components. Aircraft industry.
